00 00 610 Engine oil service (N62): Notes

Recycling:

Catch and dispose of used oil.

Observe country-specific waste-disposal regulations.

NOTE: For purposes of clarity, this work step is shown without the reinforcement plate.

Open oil drain plug (1) in oil sump.

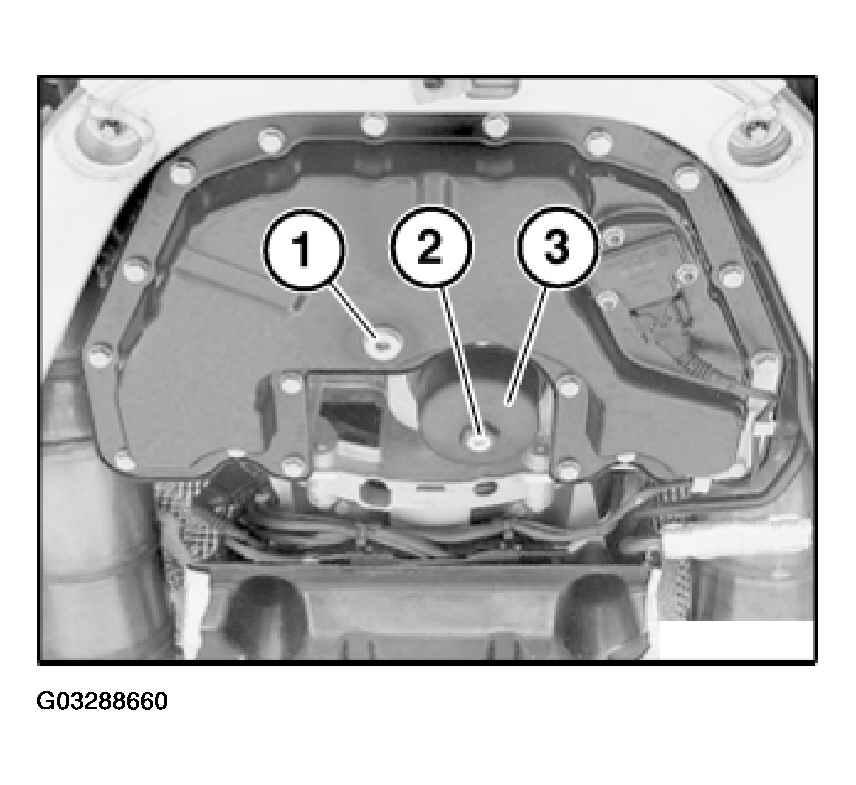

Fig 1: Removing Drain Plug On Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil drain plug (2) on oil filter cap (3).

Release oil filter cover (3).
