86 10 ... Removing rest on loading ramp, left, right and center

CAUTION: Before drilling out rivets, drive in rivet pins with a punch.

Drill out rivets (1). Remove rest (2) towards front.

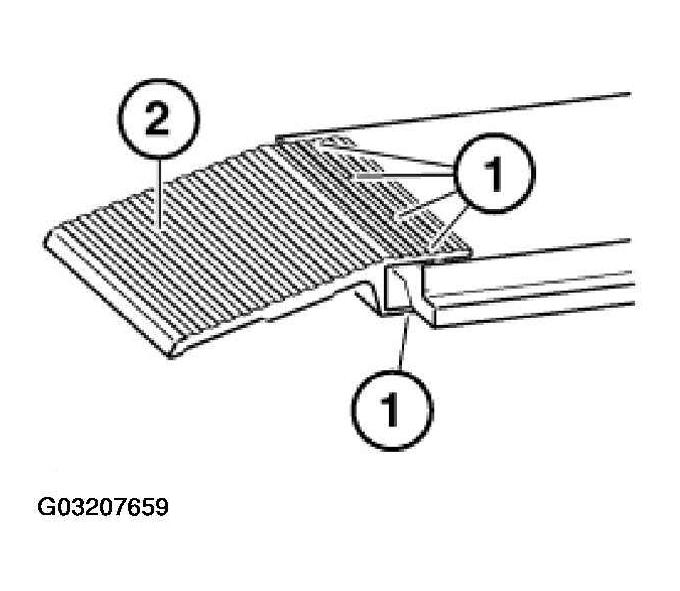

Fig 1: Removing Rest
G03207659Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Stick on new sealing tape.
