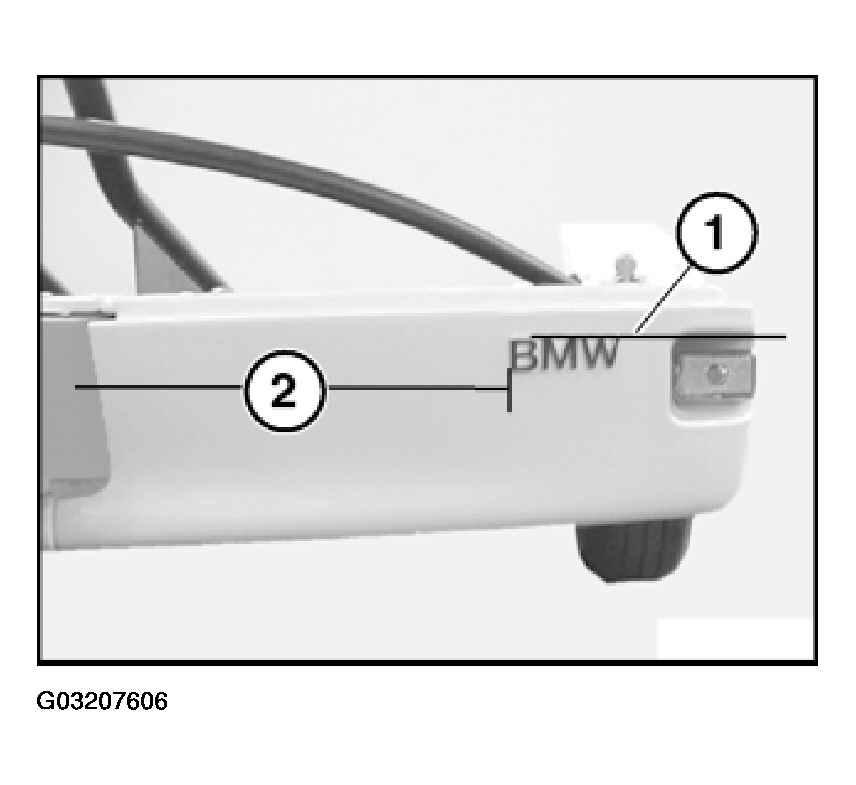

86 10 ... Installation position of BMW lettering
Top edge of lettering at same height as recess for position light (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Distance between drawbar member and lettering (2) is 300 mm.
Installation:
Remove grease from gluing surfaces.
