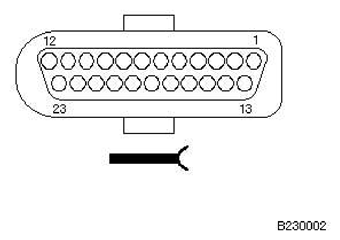

Variable Valve Timing Gear Control Module X60212 Connector End View
Pin Assignments X60212
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Signal, terminal 87 | Fuse, officials utility vehicle F001 |
| 2 | A | Supply, position sensor for variable valve timing gear | Position sensor, Valvetronic |
| 3 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic |
| 4 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic |
| 5 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic |
| 6 | Not used | ||
| 7 | A/E | CAN-bus high | Engine Control Module (DME) |
| 8 | Not used | ||
| 9 | A | Supply, position sensor for variable valve timing gear | Position sensor, Valvetronic 2 |
| 10 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic 2 |
| 11 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic 2 |
| 12 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic 2 |
| 13 | A/E | Communication link (VVT) | Engine Control Module (DME) |
| 14 | Not used | ||
| 15 | M | Shield | Position sensor, Valvetronic |
| 16 | M | Ground, position sensor for variable valve timing gear | Position sensor, Valvetronic |
| 17 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic |
| 18 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic |
| 19 | A/E | CAN-bus low | Engine Control Module (DME) |
| 20 | M | Shield | Position sensor, Valvetronic 2 |
| 21 | M | Ground, position sensor for variable valve timing gear | Position sensor, Valvetronic 2 |
| 22 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic 2 |
| 23 | E | Signal, position sensor for variable valve timing gear | Position sensor, Valvetronic 2 |
