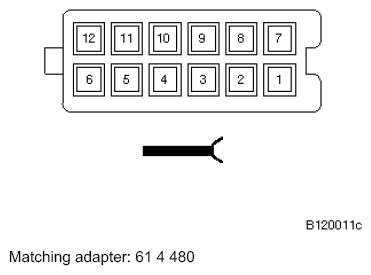

Park Distance Control Module X300 Connector End View
Pin Assignments At Connector X300
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Terminal 15 | Fuse F6 |
| 2 | A | PDC loudspeaker control | Park distance control loudspeaker |
| 3 | Not used | ||
| 4 | E/A | I-bus signal line | I-bus splice |
| 5 | Not used | ||
| 6 | M | Control Module ground | Ground point |
| 7 | A | Indicator lamp PDC switch | A169 Switching center |
| 8 | M | PDC loudspeaker ground | Park distance control loudspeaker |
| 9 | A | Chime Module activation | Chime Module |
| 10 | A | PDC switch switching signal | A169 Switching center |
| 11 | A | Back-up light signal | H10 Chime Module |
| 12 | Not used |
