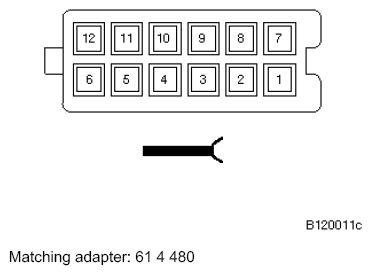

Park Distance Control Module X18362 Connector End View
Pin Assignments At Connector X18362
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | M | Ground, front center left converter | LH front center converter |
| 2 | M | Ground, front right converter | RH front converter |
| 3 | M | Ground, front left converter | LH front converter |
| 4 | A | Positive activation, front center right converter | RH front center converter |
| 5 | A | Positive activation, front center left converter | LH front center converter |
| 6 | A | Positive activation, front right converter | RH front converter |
| 7 | M | Ground, front center right converter | RH front center converter |
| 8 | A | RH front center converter signal line | RH front center converter |
| 9 | A | LH front center converter signal line | LH front center converter |
| 10 | A | RH front converter signal line | RH front converter |
| 11 | A | LH front converter signal line | LH front converter |
| 12 | A | Positive activation, front left converter | LH front converter |
