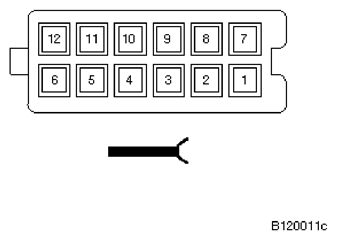

Park Distance Control Module X18013 Connector End View
Pin Assignments At Connector X18013
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | M | Ground, rear center left converter | LH rear center converter |
| 2 | M | Ground, rear right converter | RH rear converter |
| 3 | M | Ground, rear left converter | LH rear converter |
| 4 | A | Positive activation, rear center right converter | RH rear center converter |
| 5 | A | Positive activation, rear center left converter | LH rear center converter |
| 6 | A | Positive activation, rear right converter | RH rear converter |
| 7 | M | Ground, rear center right converter | RH rear center converter |
| 8 | A | RH rear center converter signal line | RH rear center converter |
| 9 | A | LH rear center converter signal line | LH rear center converter |
| 10 | A | RH rear converter signal line | RH rear converter |
| 11 | A | LH rear converter signal line | LH rear converter |
| 12 | A | Positive activation, rear left converter | LH rear converter |
