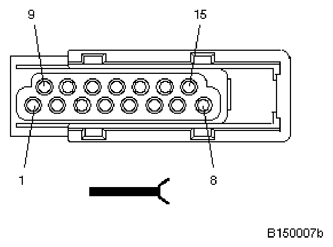

Light Module X38 Connector End View
Pin Assignments At Connector X38
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | A | Nighttime illumination signal line | Terminal 58 splice |
| 2 | M | Control Module ground | Ground splice |
| 3 | A | Right low beam light | Low beam light, right |
| 4 | A | Left front turn light Tyre pressure control | Left front auxiliary turn light |
| 5 | Not used | ||
| 6 | A | Left high beam light | Left high beam |
| 7 | A | Left fog light | Left fog light |
| 8 | E | Terminal 30 voltage supply | Fuse F107 |
| 9 | A | Left back-up light | Trunk lid lamp, left |
| 10 | A | Right back-up light | Trunk lid lamp, right |
| 11 | A | Left front turn light | Left front turn signal lamp |
| 12 | A | LH rear turn light | Tail light I right |
| 13 | Not used | ||
| 14 | A | Right brake light | Tail light I right |
| 15 | A | Left rear fog light | Trunk lid lamp, left Trailer Module (AHM) |
