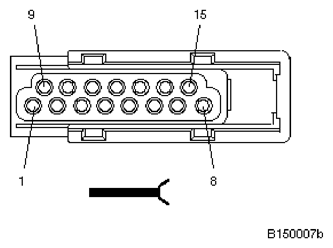

Light Module X12 Connector End View
Pin Assignments At Connector X12
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | A | Right rear fog light | Trunk lid lamp, right Trailer Module (AHM) |
| 2 | A | Left tail light | Tail light I left |
| 3 | A | Power supply E19 Right parking light | E19 Right parking light |
| 4 | A | Right fog light | Right fog light |
| 5 | A | Left license plate light | Left license plate light |
| 6 | A | Right front turn light | Right front turn signal lamp |
| 7 | M | Control Module ground | Ground point |
| 8 | A | Rear left turn light | Tail light I left |
| 9 | A | Left brake light | Tail light I left |
| 10 | A | Center brake light | High level stop light |
| 11 | A | Left low beam light | Low beam light, left |
| 12 | A | Right license plate light | Right license plate light |
| 13 | A | Right high beam light | Right high beam |
| 14 | A | Right front turn light Tyre pressure control | Right front auxiliary turn light |
| 15 | E | Terminal 30 voltage supply Fuse F106 |
