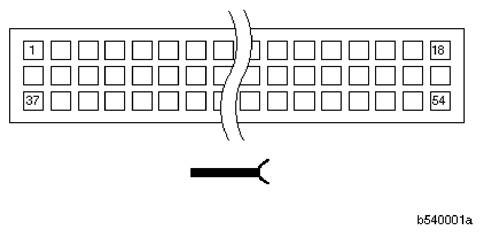

Light Module X10117 Connector End View
Pin Assignments At Connector X10117
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | A | Illumination switch | S8 Light switch |
| 2 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, left |
| 3 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, left |
| 4 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, left |
| 5 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, left |
| 6 | Not used | ||
| 7 | E | Hazard lights ON signal | Hazard warning flasher switch |
| 8 | E | Rear fog light ON signal | S8 Light switch |
| 9 | Not used | ||
| 10 | E | Washer fluid level | Washer fluid level switch |
| 11 | Not used | ||
| 12 | Not used | ||
| 13 | E | Voltage supply terminal R | Fuse F9 |
| 14 | Not used | ||
| 15 | E | Oil level - thermal | Engine Control Module (DME) Digital diesel electronics control unit |
| 16 | E | Dimmer signal | S8 Light switch |
| 17 | A | Right parking light | E47 Right rear light assembly I |
| 18 | A | Left parking light | E15 Left parking light |
| 19 | A | Hazard switch illumination | Hazard warning flasher switch |
| 20 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, right |
| 21 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, right |
| 22 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, right |
| 23 | A | Signal, headlight vertical aim control | Actuator for headlight beam throw control, right |
| 24 | E | Engine coolant level | Engine coolant level switch |
| 25 | E | Brake light signal | Brake light switch |
| 26 | A | Back up signal | H10 Chime Module |
| 27 | A | Headlight widening Control Module power | Headlight widening Control Module |
| 28 | A | Back up signal | Intermittent wipe/wash control unit, rear |
| 29 | A | 5 V signal, potentiometer 1 | S8 Light switch |
| 30 | E | Signal Turn light | Combination switch |
| 31 | E | Terminal 15 | Fuse F2 |
| 32 | Not used | ||
| 33 | E | Headlights ON signal | Light switch |
| 34 | E | Signal Headlight widening adjustment | Light switch |
| 35 | A | Interface AHM/LM | Trailer Module (AHM) |
| 36 | E/A | I/K-bus signal link | Connector, I/K-bus |
| 37 | Not used | ||
| 38 | E | Back up signal | Navigation Control Module |
| 39 | E | Back up signal | Electrochromic rear view mirror |
| 40 | Not used | ||
| 41 | E | Brake fluid level | Brake fluid level switch |
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | Not used | ||
| 45 | E | Rear fog light ON signal | Light switch |
| 46 | Not used | ||
| 47 | E | ABS/DSC indicator lamp | A65 ABS/DSC Control Module |
| 48 | Not used | ||
| 49 | Not used | ||
| 50 | E | Signal High beam, headlight flash switch | Combination switch |
| 51 | E | Park light ON signal | Light switch |
| 52 | M | Ground for electronic components | Light switch |
| 53 | Not used | ||
| 54 | Not used |
