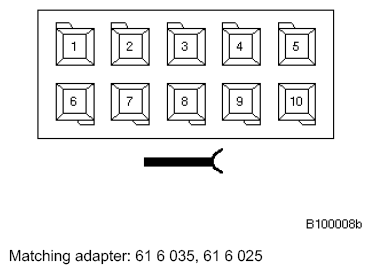

Combination Switch X32 Connector End View
Pin Assignments At Connector X32
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Headlight signal | Instrument cluster Integrated instrument cluster Control Module (IKE) |
| 2 | Not used | ||
| 3 | Not used | ||
| 4 | Not used | ||
| 5 | Not used | ||
| 6 | Not used | ||
| 7 | E | Signal High beam, headlight flash switch | Light Module |
| 8 | Not used | ||
| 9 | E | Signal Turn light | Light Module |
| 10 | M | Ground | Ground splice X217 |
