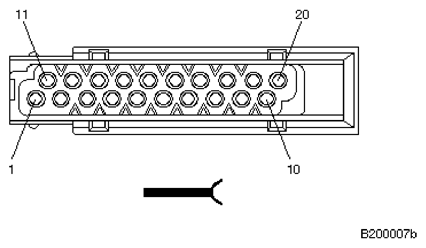

C General Module X254 Connector End View
Pin Assignments At Connector X254
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | M | Terminal 31 Ground wire | Ground point |
| 2 | A | Open window signal | Left rear window motor right-hand drive Right rear window motor |
| 3 | A | Consumer cut-off signal | Consumer cut-off splice |
| 4 | E | Terminal 30 | Fuse F60 |
| 5 | A | Open window signal | Right rear window motor right-hand drive Left rear window motor |
| 6 | A | Central arrest signal | Rear doors central locking motors |
| 7 | A | Unlock signal | Motor, bottom tailgate |
| 8 | Not used | ||
| 9 | A | Servotronic control | Electro-hydraulic converter (Servotronic) |
| 10 | E | Terminal 30 | Fuse F27 |
| 11 | A | Measuring resistor, Servotronic | Electro-hydraulic converter (Servotronic) |
| 12 | A | Close window signal | Left rear window motor right-hand drive Right rear window motor |
| 13 | A | Central lock (ZV) | Rear doors central locking motors |
| 14 | A | Unlock signal | Rear doors/tank access flap central locking motors |
| 15 | A | Close window signal | Right rear window motor right-hand drive Left rear window motor |
| 16 | A | Activation, luggage compartment light | Trunk compartment lights |
| 17 | A | Activation, courtesy lighting | Front zone lighting |
