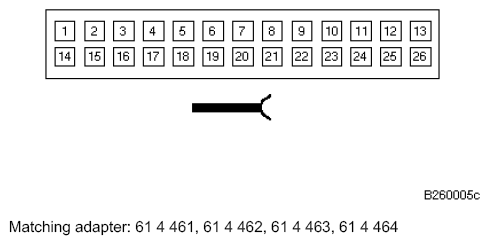

B General Module X253 Connector End View
Pin Assignments At Connector X253
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | Not used | ||
| 2 | A | Soft-close motor signal | Trunk lid servo motor |
| 3 | Not used | ||
| 4 | E | Soft-close motor signal | Trunk lid servo motor |
| 5 | A | Interior protection | Interior protection control module |
| 6 | Not used | ||
| 7 | A | Interface signal RDC/DWA | RDC control module |
| 8 | A | Vehicle tilt signal | Siren and tilt alarm sensor |
| 9 | A | Horn signal | Siren and tilt alarm sensor |
| 10 | E | Trunk lid open signal | Trunk lid locking switch |
| 11 | E | Trunk lid open signal | Switching center |
| 12 | E | Pressure-sensitive finger guard system signal | Left rear window pressure-sensitive finger guard right-hand drive Right rear window pressure-sensitive finger guard |
| 13 | E | Crash signal | Supplemental restraint system control module |
| 14 | Not used | ||
| 15 | E | Wiper control I | Wiper relay |
| 16 | E | Wiper control II | Wiper relay |
| 17 | A | Headlight wash control | Headlight washer module |
| 18 | A | Signal, child safety lock | Relay, rear compartment backrest |
| 19 | E | LED control | Electrochromic rear view mirror |
| 20 | A | Tilt signal | Siren and tilt alarm sensor |
| 21 | A | Soft-close motor signal Close | Trunk lid servo motor |
| 22 | A | Soft-close motor signal Open | Trunk lid servo motor |
| 23 | E | Speed signal, rear | ABS/DSC control module |
| 24 | A | Pressure-sensitive finger guard system signal | Right rear window pressure-sensitive finger guard right-hand drive Left rear window pressure-sensitive finger guard |
| 25 | E | Signal, intermittent wipe | Wiper/washer switch |
| 26 | M | Terminal 31 | Ground splice |
