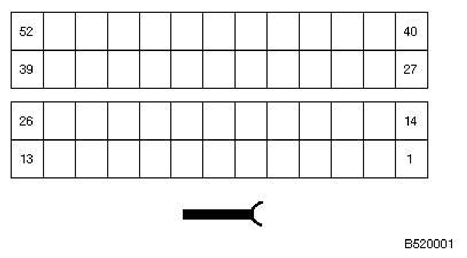

AGS Transmission Control Unit Module 3 X70003 Connector End View
Pin Assignments At Plug Connector X70003
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | M | Ground Magnet P/N lockout | Shift lock selector lever lock |
| 2 | A | Supply Magnet P/N lockout | Shift lock selector lever lock |
| 3 | E | Signal, gearshift position L2 | Electronic immobilizer control unit (EWS) |
| 4 | - | Not used | |
| 5 | - | Not used | |
| 6 | - | Not used | |
| 7 | - | Not used | |
| 8 | - | Not used | |
| 9 | - | Not used | |
| 10 | - | Not used | |
| 11 | - | Not used | |
| 12 | - | Not used | |
| 13 | - | Not used | |
| 14 | - | Not used | |
| 15 | - | Not used | |
| 16 | - | Not used | |
| 17 | - | Not used | |
| 18 | A | Gear indicator signal | Gear indicator light |
| 19 | E | Steptronic signal, upshift | Steptronic switch |
| 20 | E | Steptronic signal, back | Steptronic switch |
| 21 | - | Not used | |
| 22 | - | Not used | |
| 23 | - | Not used | |
| 24 | - | Not used | |
| 25 | - | Not used | |
| 26 | - | Not used | |
| 27 | - | Not used | |
| 28 | - | Not used | |
| 29 | - | Not used | |
| 30 | - | Not used | |
| 31 | - | Not used | |
| 32 | - | Not used | |
| 33 | - | Not used | |
| 34 | - | Not used | |
| 35 | - | Not used | |
| 36 | - | Not used | |
| 37 | - | Not used | |
| 38 | - | Not used | |
| 39 | - | Not used | |
| 40 | - | Not used | |
| 41 | - | Not used | |
| 42 | - | Not used | |
| 43 | - | Not used | |
| 44 | - | Not used | |
| 45 | - | Not used | |
| 46 | - | Not used | |
| 47 | - | Not used | |
| 48 | - | Not used | |
| 49 | - | Not used | |
| 50 | - | Not used | |
| 51 | - | Not used | |
| 52 | - | Not used |
