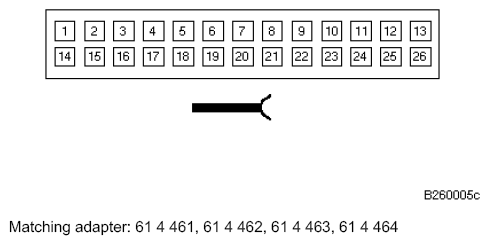

A General Module X332 Connector End View
Pin Assignments At Connector X332
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Terminal 30 | Fuse F14 |
| 2 | E | Interior lights signal | Interior/reading lamp, front |
| 3 | E | Windshield wash signal | Wiper/washer switch |
| 4 | E | Windshield wipe signal 2 | Wiper/washer switch |
| 5 | E | Windshield wipe signal 1 | Wiper/washer switch |
| 6 | E | Door contact signal | Rear right door jamb switch, right-hand drive Left rear door jamb switch |
| 7 | E | Door contact signal | Left rear door jamb switch, right-hand drive Rear right door jamb switch |
| 8 | Not used | ||
| 9 | Not used | ||
| 10 | Not used | ||
| 11 | E | Soft-close motor signal | Trunk lid servo motor |
| 12 | E/A | K-bus signal line | K-bus splice |
| 13 | E | Central locking signal | Electrochromic rear view mirror Central locking remote control |
| 14 | M | Ground | Ground splice |
| 15 | E | Close window signal | LH rear power window switch right-hand drive RH rear power window switch |
| 16 | E | Intensive wash signal | Wiper/washer switch |
| 17 | E | Open window signal | RH rear power window switch right-hand drive LH rear power window switch |
| 18 | E | Close window signal | RH rear power window switch right-hand drive LH rear power window switch |
| 19 | E | Signal, front lid contact | Underhood light switch |
| 20 | E | Wipers in motion signal | Wiper motor |
| 21 | Not used | ||
| 22 | E | Trunk lid open signal | Trunk lid locking switch |
| 23 | E | Terminal R | Fuse F41 |
| 24 | E | Lock signal | Hazard switch |
| 25 | E/A | P-bus signal line | P-bus splice |
| 26 | E | Open window signal | LH rear power window switch right-hand drive RH rear power window switch |
