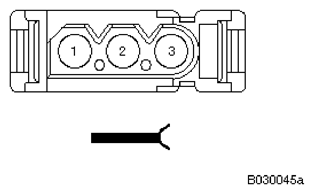

0 Heating And A/C Control Module X18341 Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Connector 0 X18341
| Pin |
Type |
Description/Signal type |
Connection/Measuring notes |
| 1 |
E |
Throttle actuator terminal 30 voltage supply |
Fuse F48 |
| 2 |
A |
Magnetic clutch voltage supply |
Y2 A/C compressor |
| 3 |
M |
Ground |
Ground point |
