Wide Screen Board Monitor Tool (04 33 01)

Publication date: 2001-12-01
Reference number: 04 33 01

WIDE SCREEN BOARD MONITOR TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 33 01, Date of Issue: December 01, 2001

BMW:	E46
GROUP:	04 - Tools and Equipment

SUBJECT

Wide Screen Board Monitor Tool

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

Board Monitor Release tool

PN 90 88 6 651 110

Price= $2.25

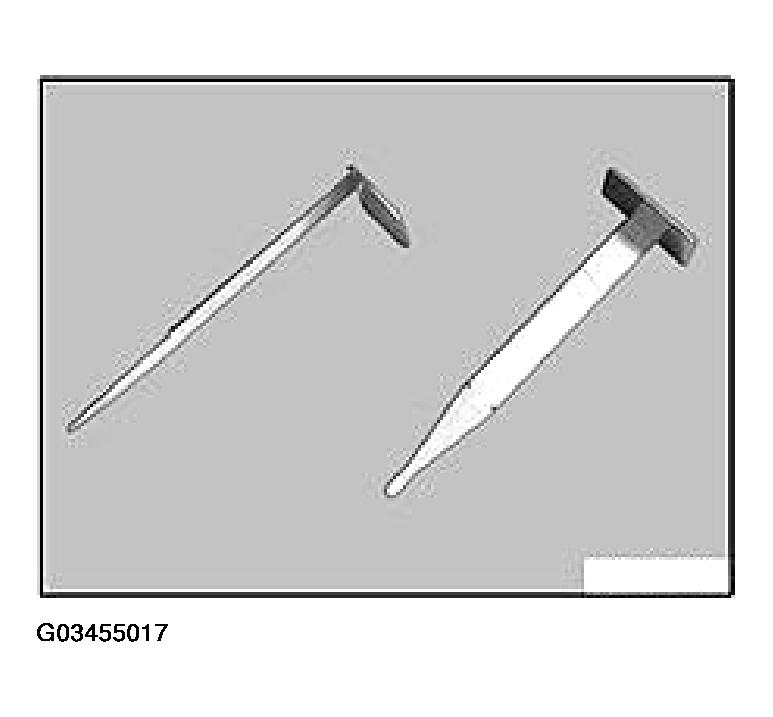

Fig 1: Board Monitor Release Tool

Used on vehicles with the wide screen board monitor to release the monitor during R & R. Refer to repair manual section 65 52 013.

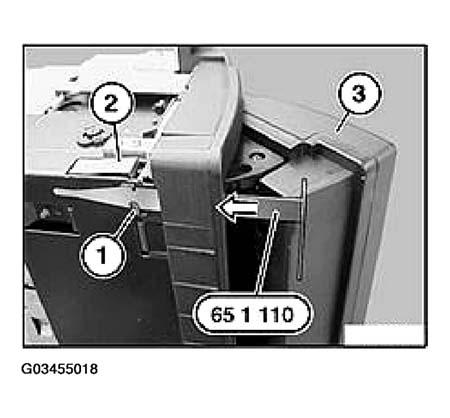

Fig 2: Releasing Board Monitor

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
