Understeer/Oversteer Conditions

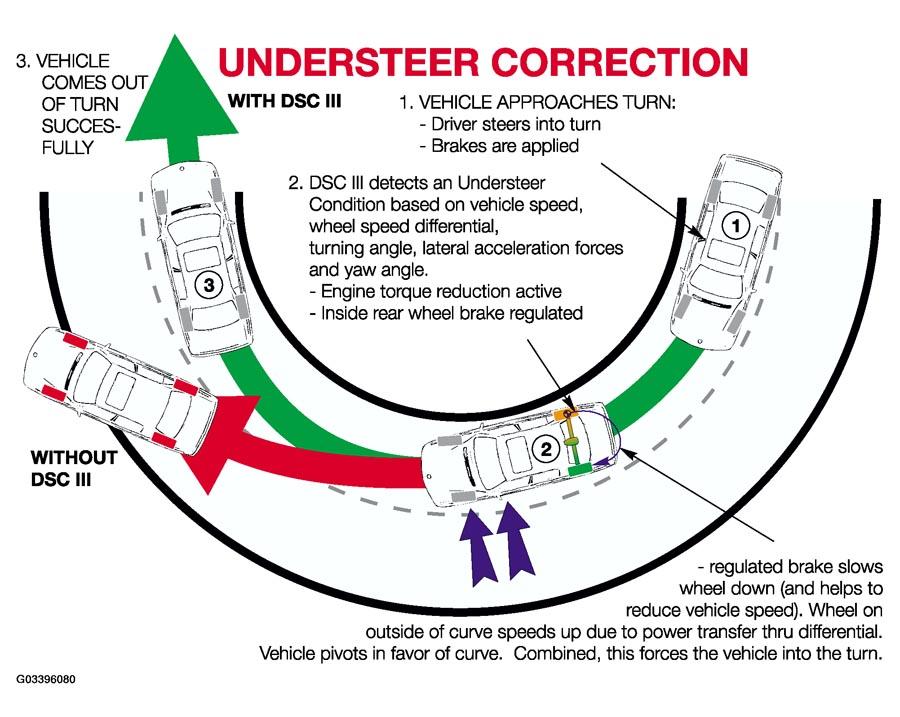

Fig 1: Understeer Correction With DSC III
G03396080Courtesy of BMW OF NORTH AMERICA, INC.

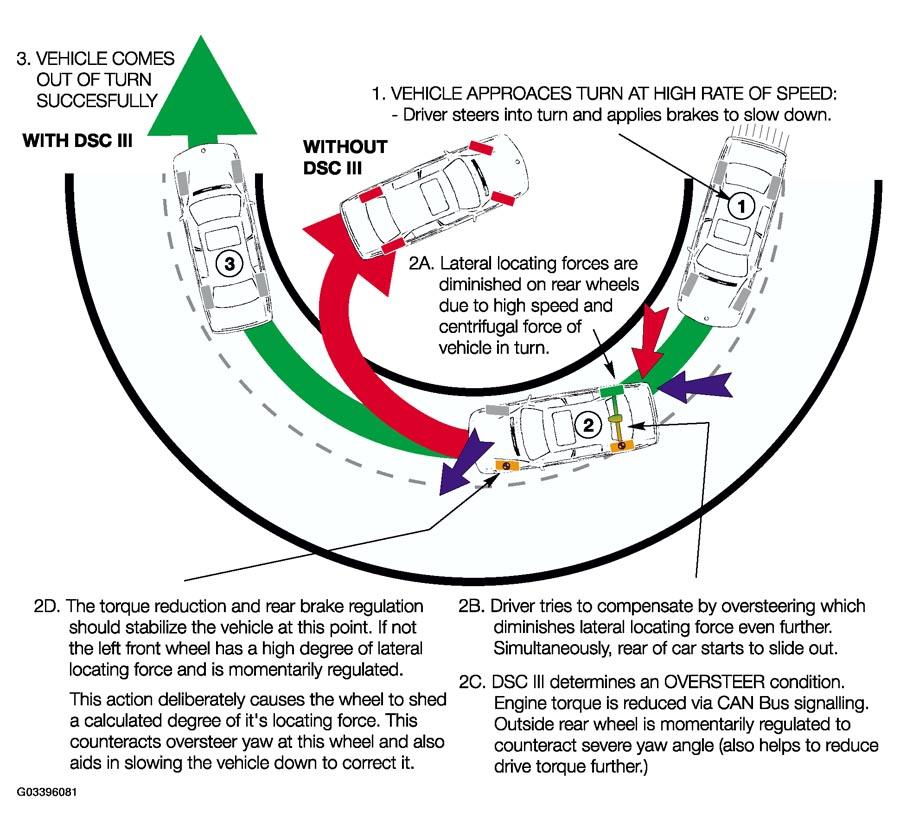

Fig 2: Oversteer Correction With DSC III
G03396081Courtesy of BMW OF NORTH AMERICA, INC.
