Removal & Installation

  1. Before removing the control unit, switch off ignition.
  2. Remove lower glove box trim.
  3. Unscrew bolts. See Fig 1 .
  4. Pull control unit down slightly to enable plug connection to be unlocked. Remove control unit.
  5. Installation is reverse of removal.

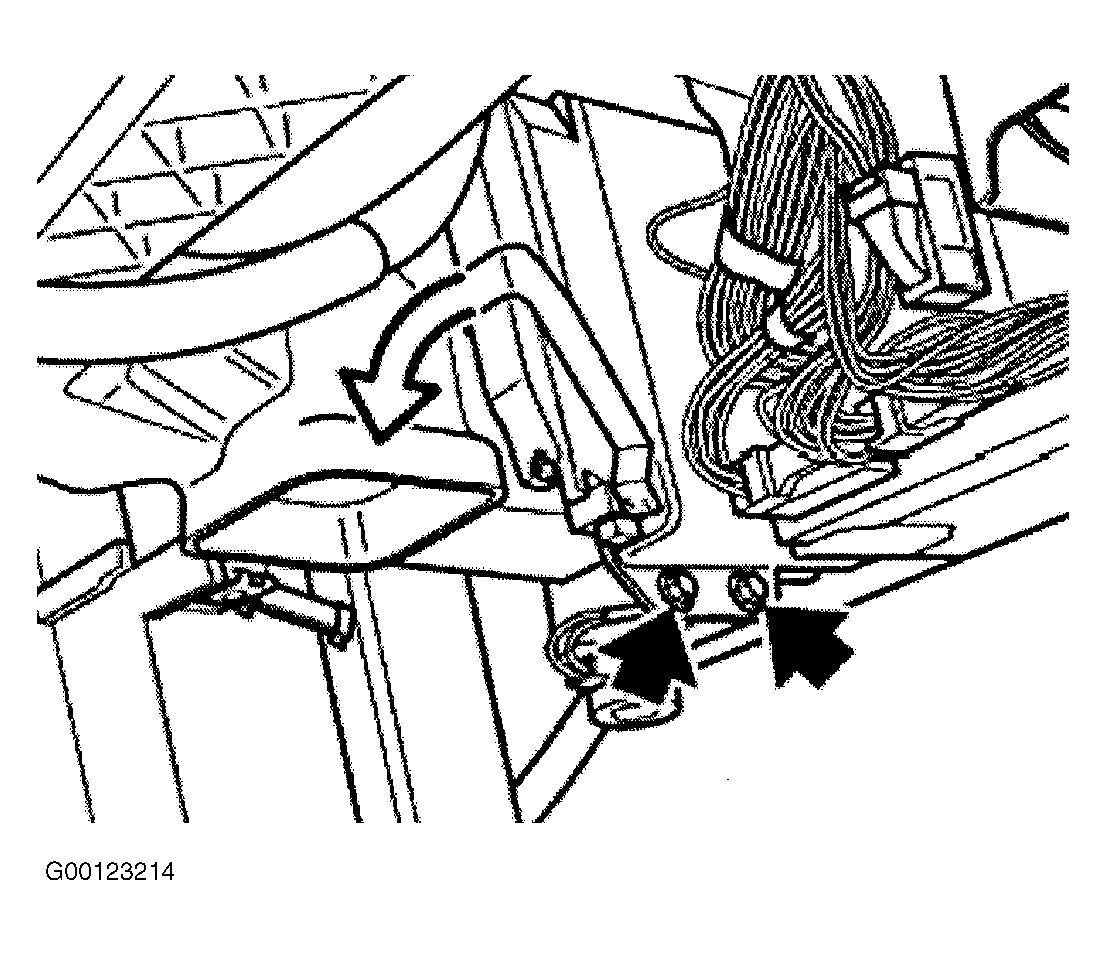

Fig 1: Removing Control Unit (For ABS)
G00123214Courtesy of BMW OF NORTH AMERICA, INC.
