61 13... Relay carrier

Place special tool 61 1 153 on relay carrier (1) and carefully pull in direction of arrow until retaining lugs (2) on relay carrier are raised.

Fig 1: Rasing Relay Carrier Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Pull relay carrier (2) in direction of arrow into first catch (3).

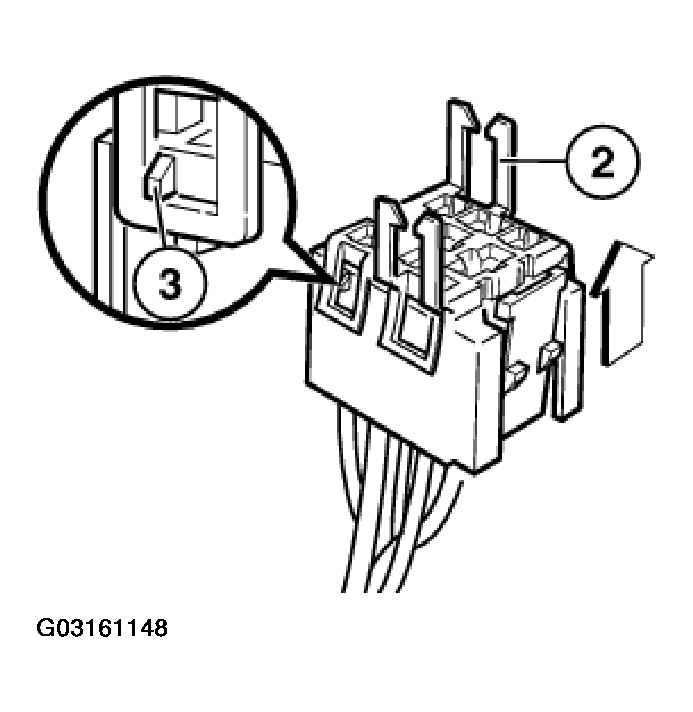

Fig 2: Pulling Relay Carrier Into First Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Press down arrester hook (4) of appropriate contact and pull out cable with contact.

Press out double flat spring contact with special tool 61 1 136 or 61 1 137 (ejector).

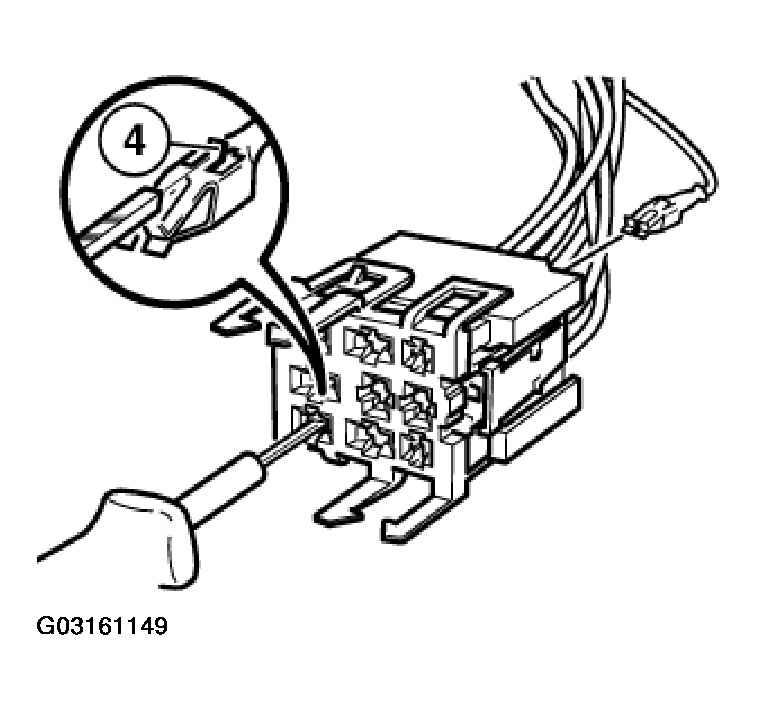

Fig 3: Removing Appropriate Contact From Relay Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
