Instrument Panel Trim (Lower Section): Installation

  1. To install, reverse removal procedure. When installing speaker cover, install the longer screws at bottom. See Figure .

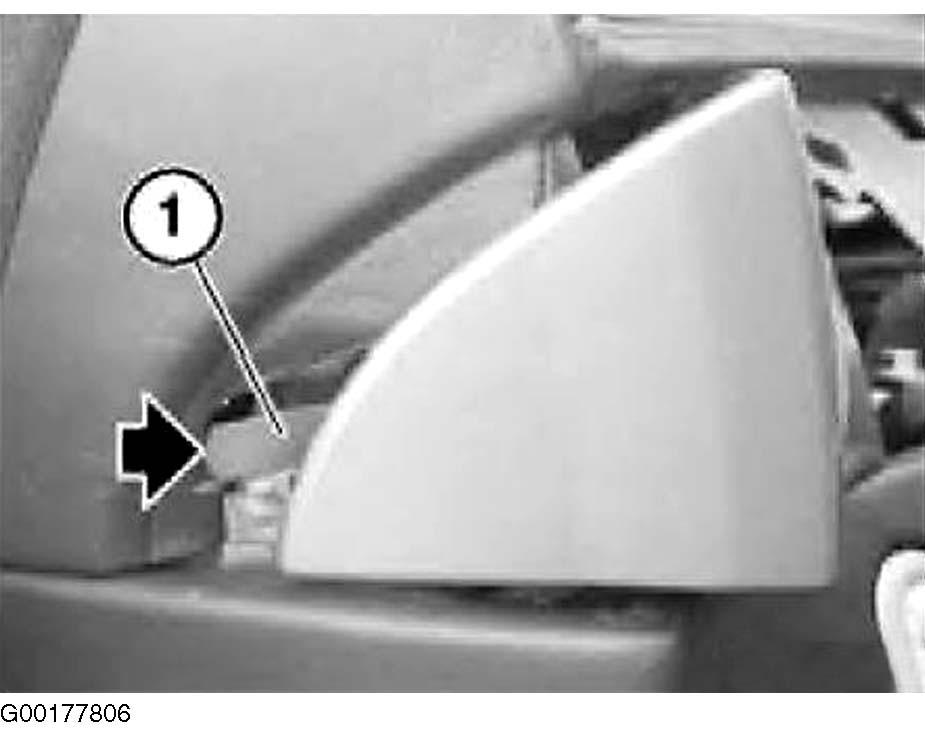

  2. When installing fresh air grill, feed retainer (1) into instrument panel trim. See Fig 1 .
Fig 1: Feeding Retainer Into Instrument Panel Trim
G00177806Courtesy of BMW OF NORTH AMERICA, INC.
