Control Mode Flow Chart

The following chart demonstrates the control sequences of the E65/E66 with single axle rear air suspension.

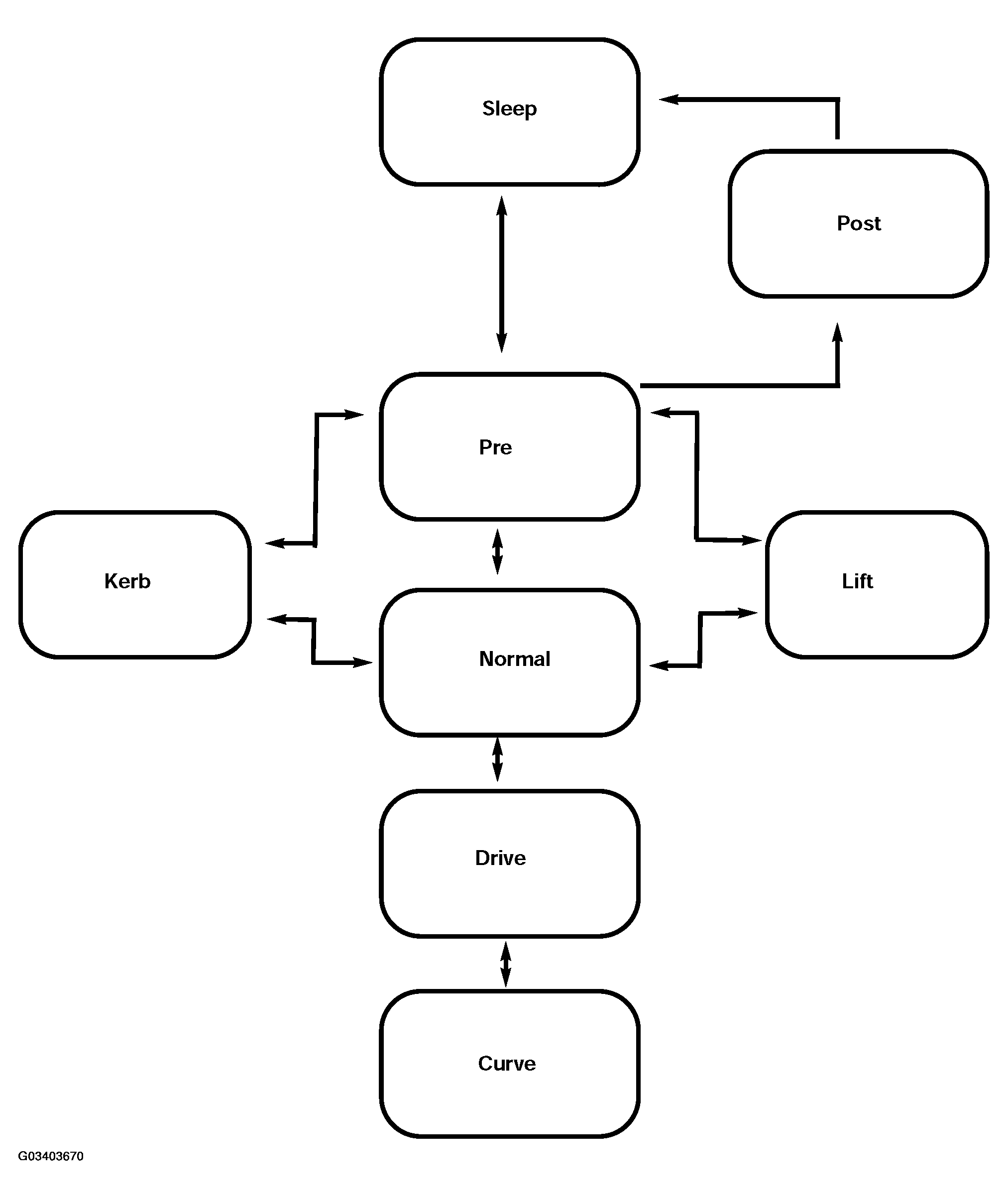

Fig 1: Control Mode Flow Chart
G03403670Courtesy of BMW OF NORTH AMERICA, INC.
