6.3 Fuel System Operating Data

Operating pressure of fuel delivery pump: 0.4 bar

Operating pressure of suction jet pump: 1 - 1.3 bar

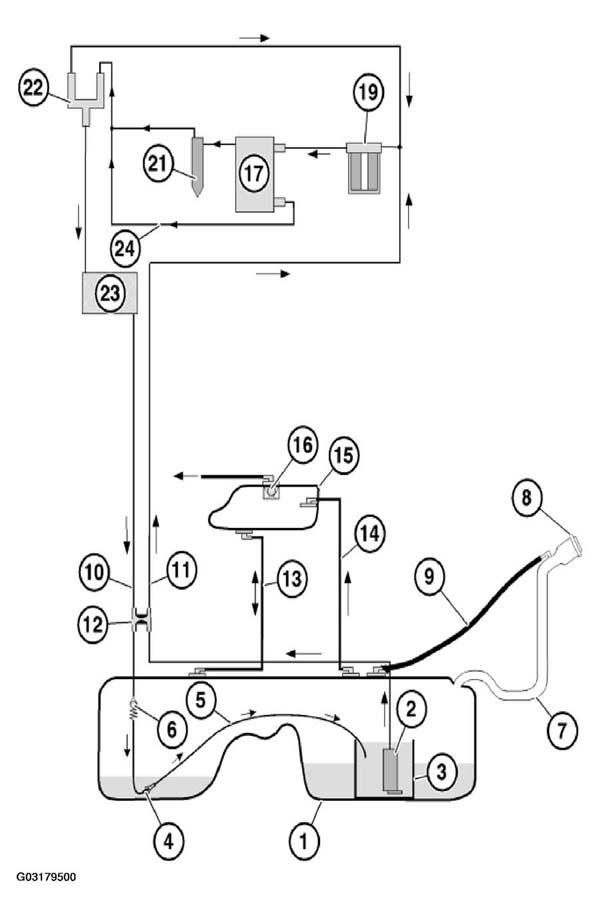

Fig 1: Identifying 6.4 Fuel supply system E46 M47
G03179500Courtesy of BMW OF NORTH AMERICA, INC.

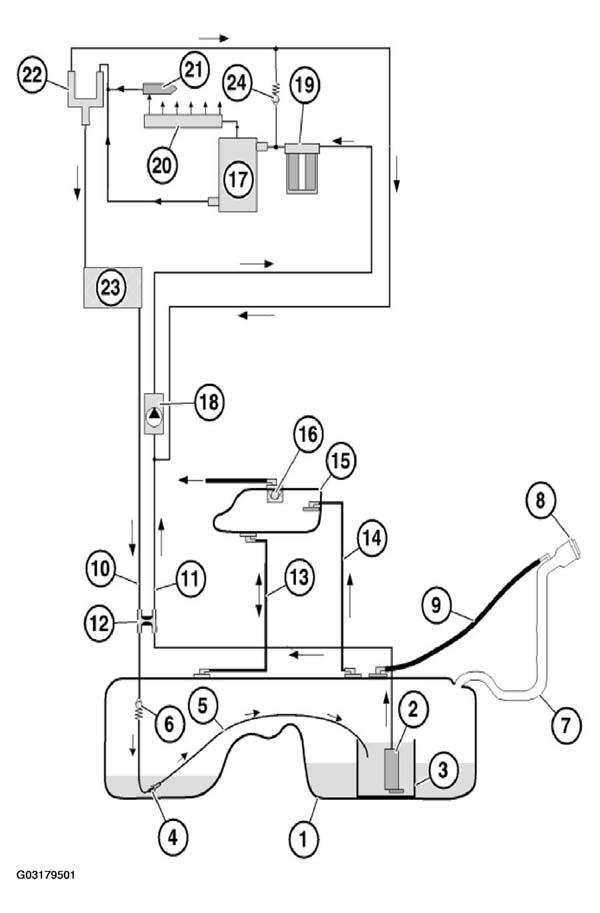

Fig 2: Identifying 6.5 Fuel supply system E46 M57
G03179501Courtesy of BMW OF NORTH AMERICA, INC.
