Connector Views

Connector Overview:

X60001 Component Connector (9-pin, Black):

X60002 Component Connector (24-pin, Black):

X60003 Component Connector (52-pin, Black):

X60004 Component Connector (40-pin, Black):

X60005 Component Connector (9-pin, Black):

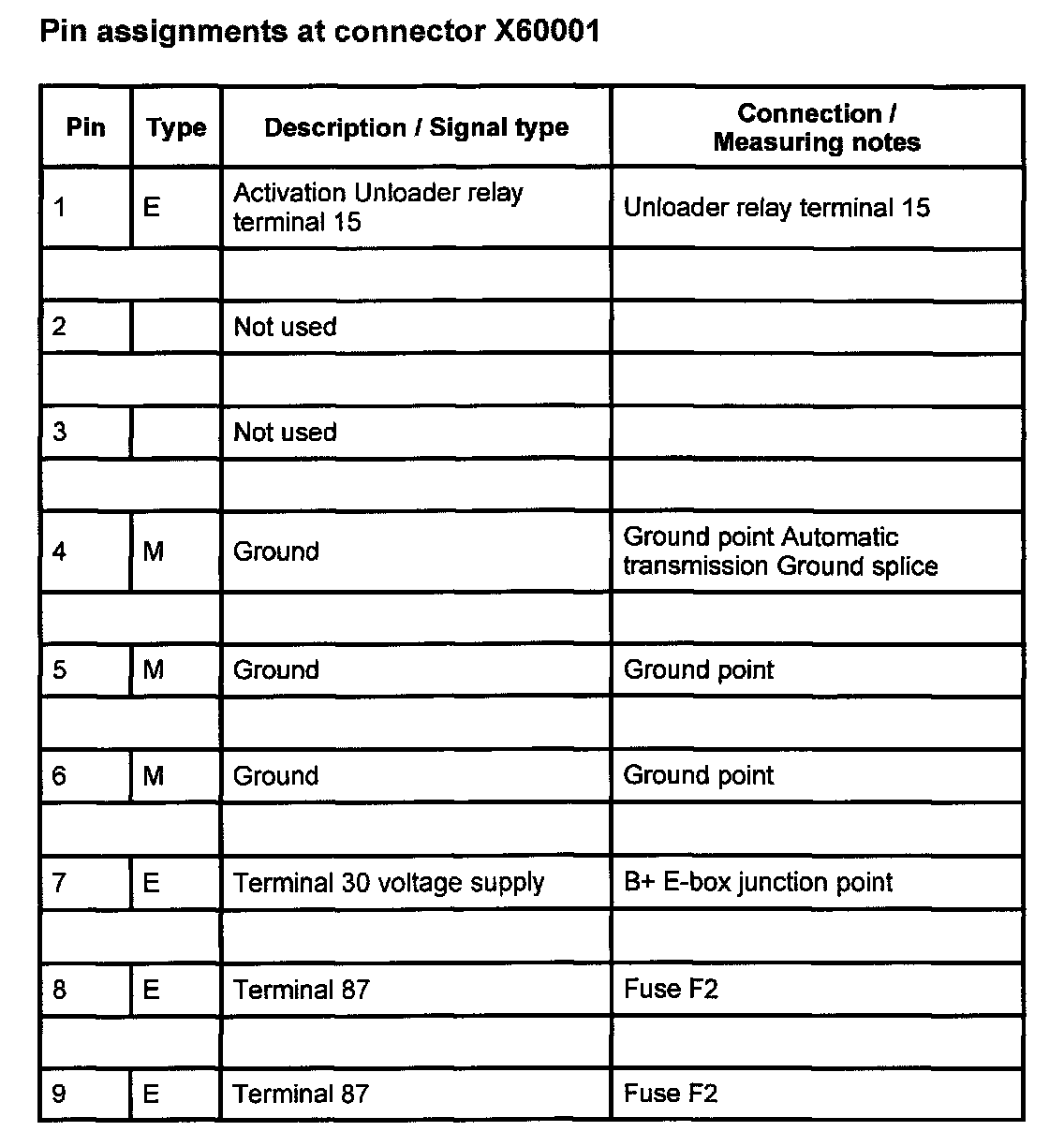

Pin Assignments At Connector X60001:

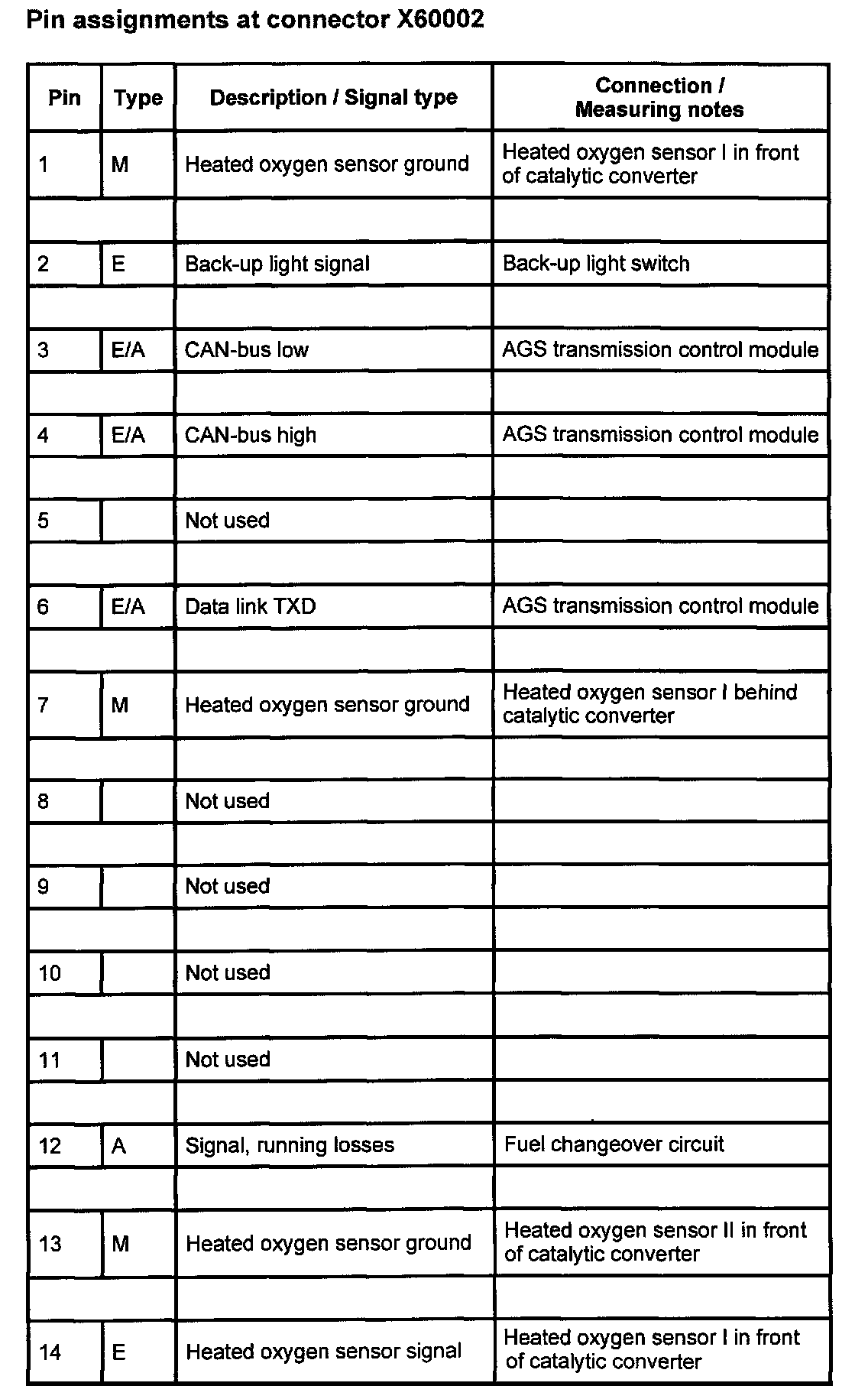

Pin Assignments At Connector X60002 (1-14):

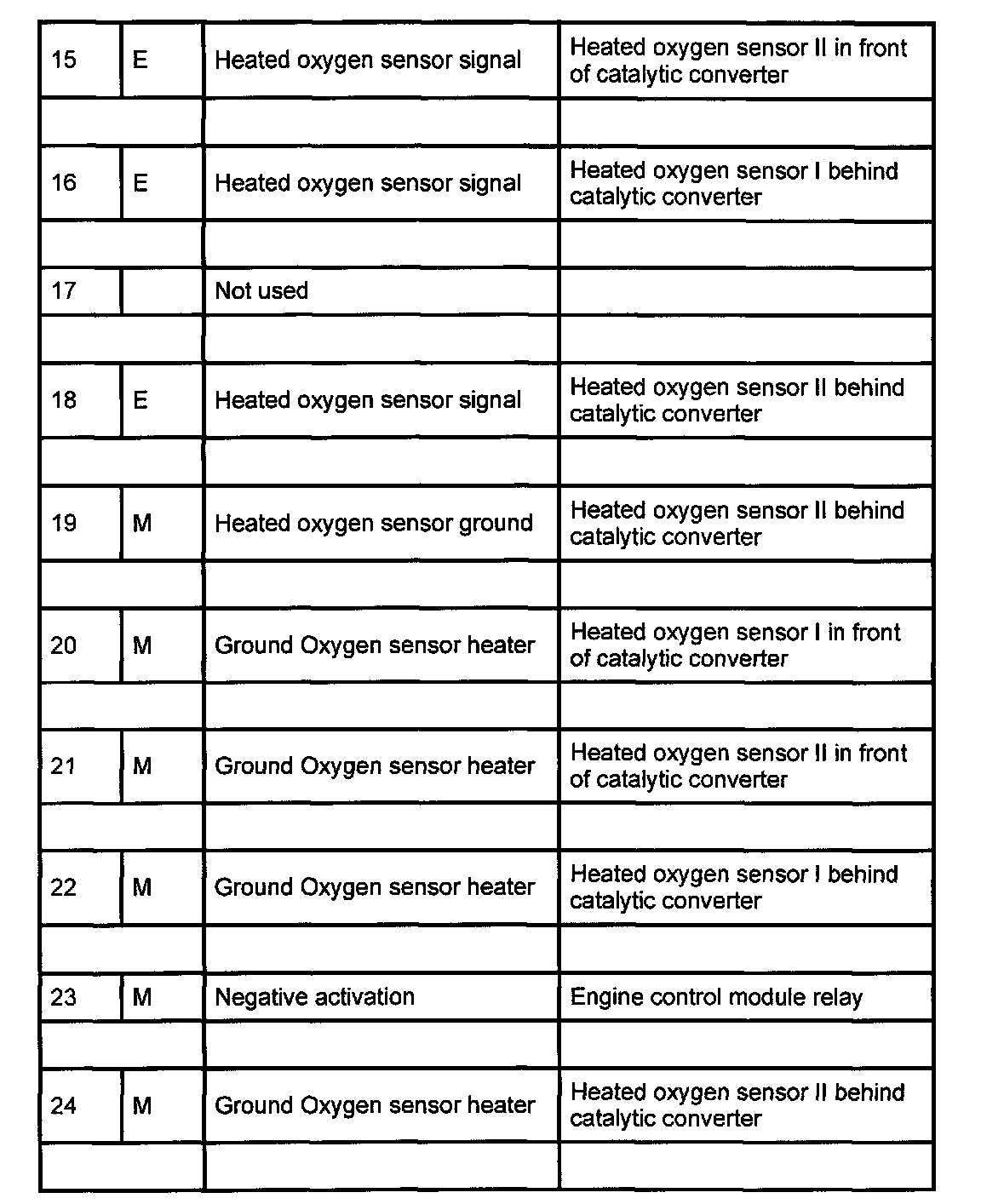

Pin Assignments At Connector X60002 (15-24):

Pin Assignments At Connector X60003 (1-2):

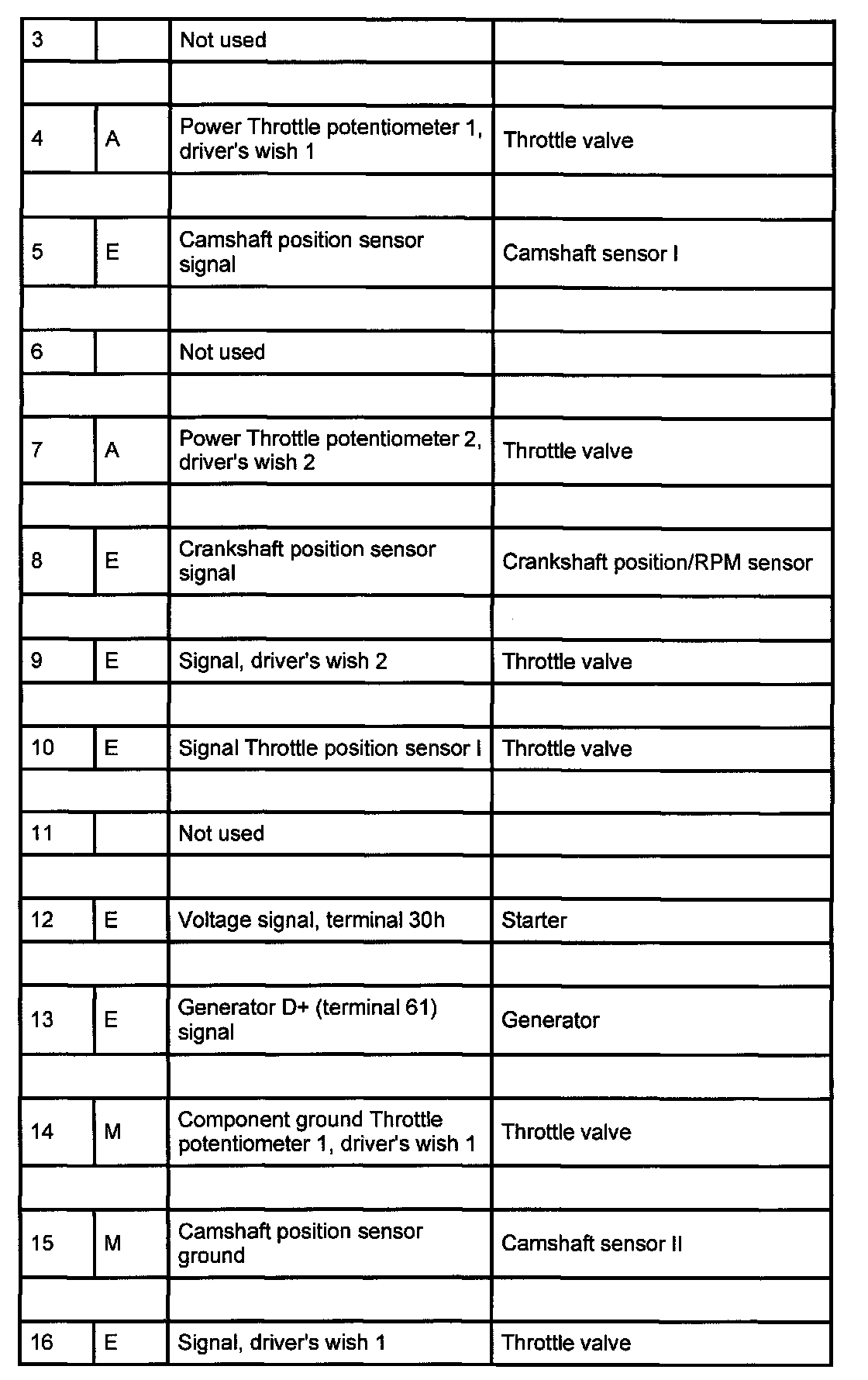

Pin Assignments At Connector X60003 (3-16):

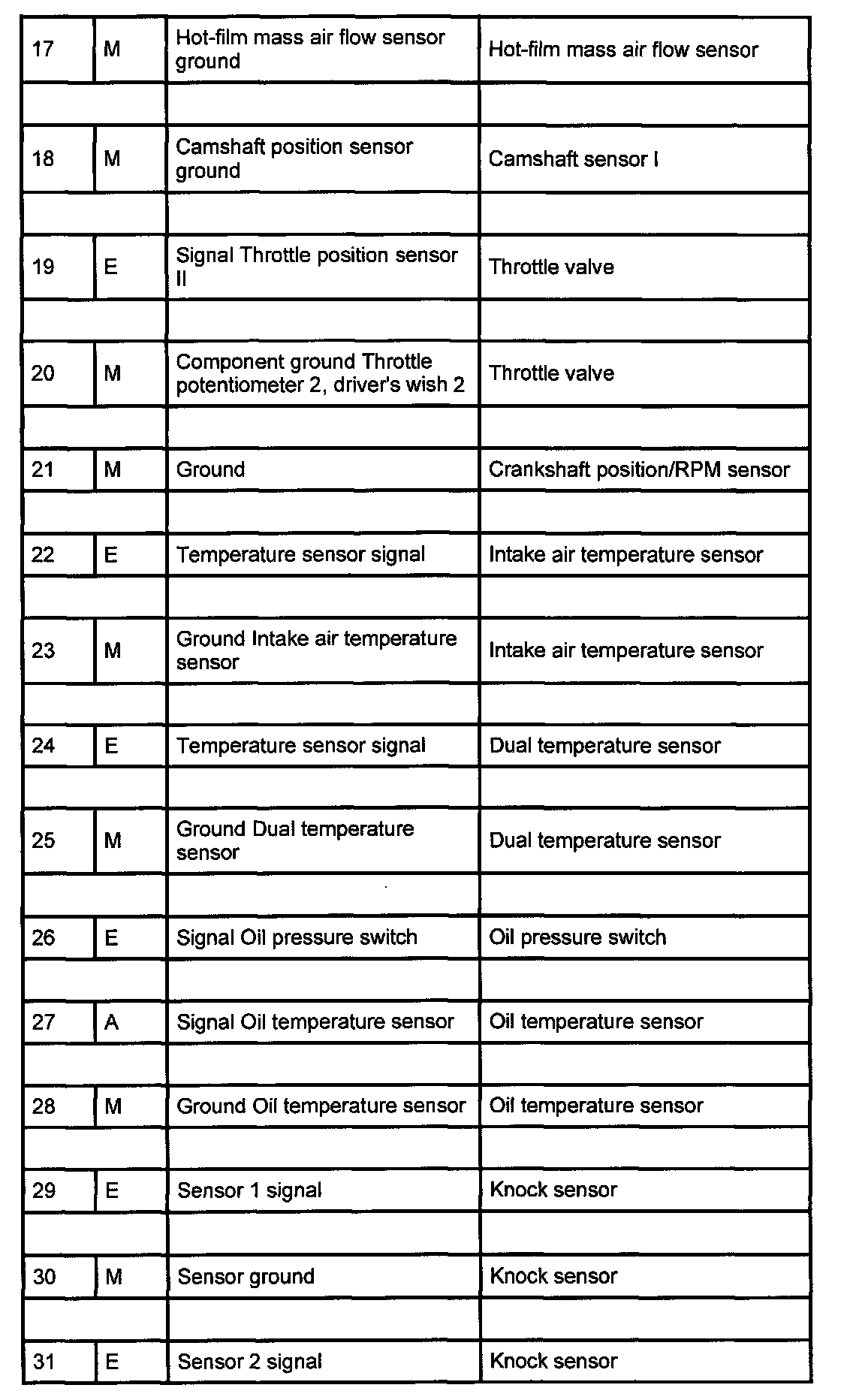

Pin Assignments At Connector X60003 (17-31):

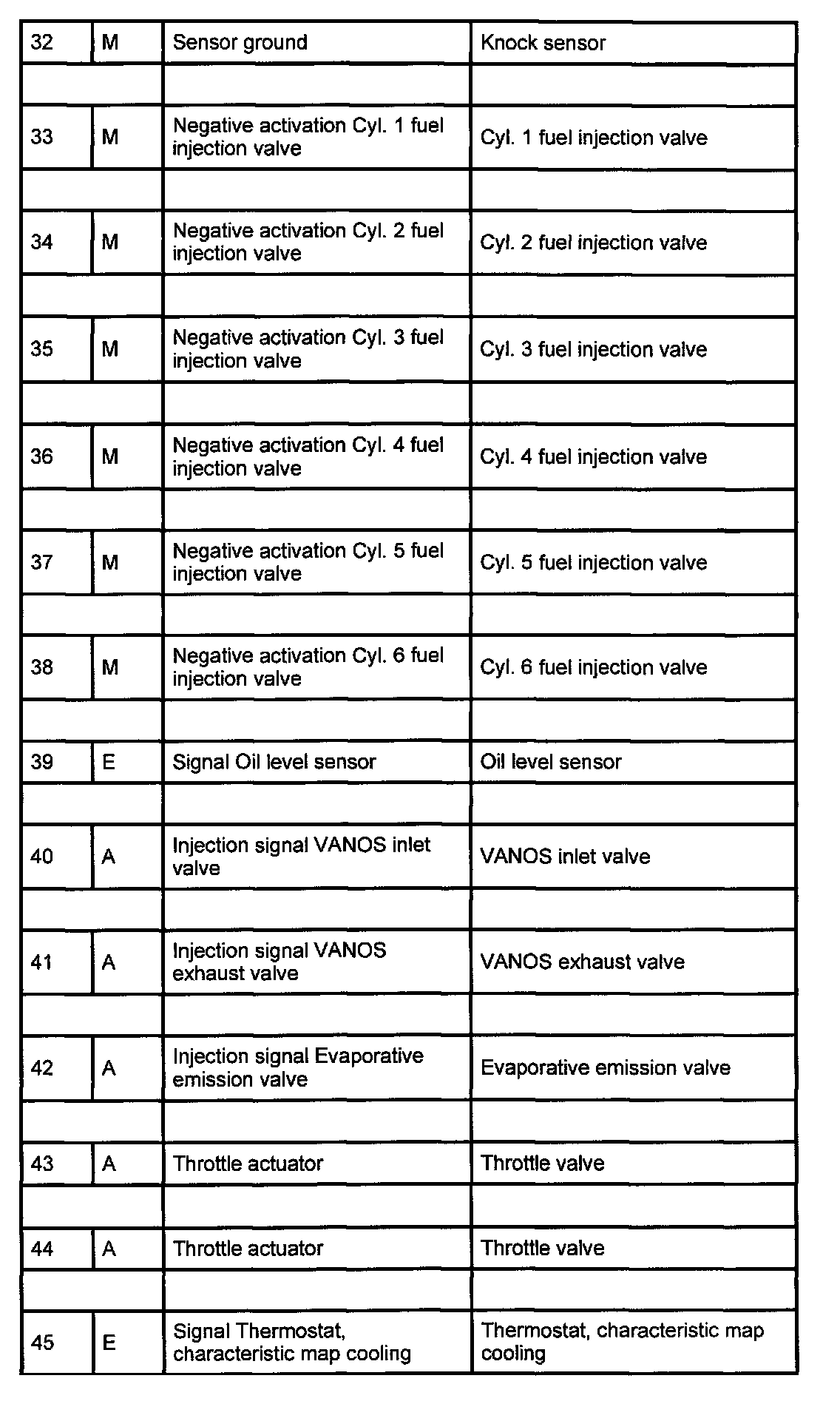

Pin Assignments At Connector X60003 (32-45):

Pin Assignments At Connector X60003 (46-52):

Pin Assignments At Connector X60004 (1-5):

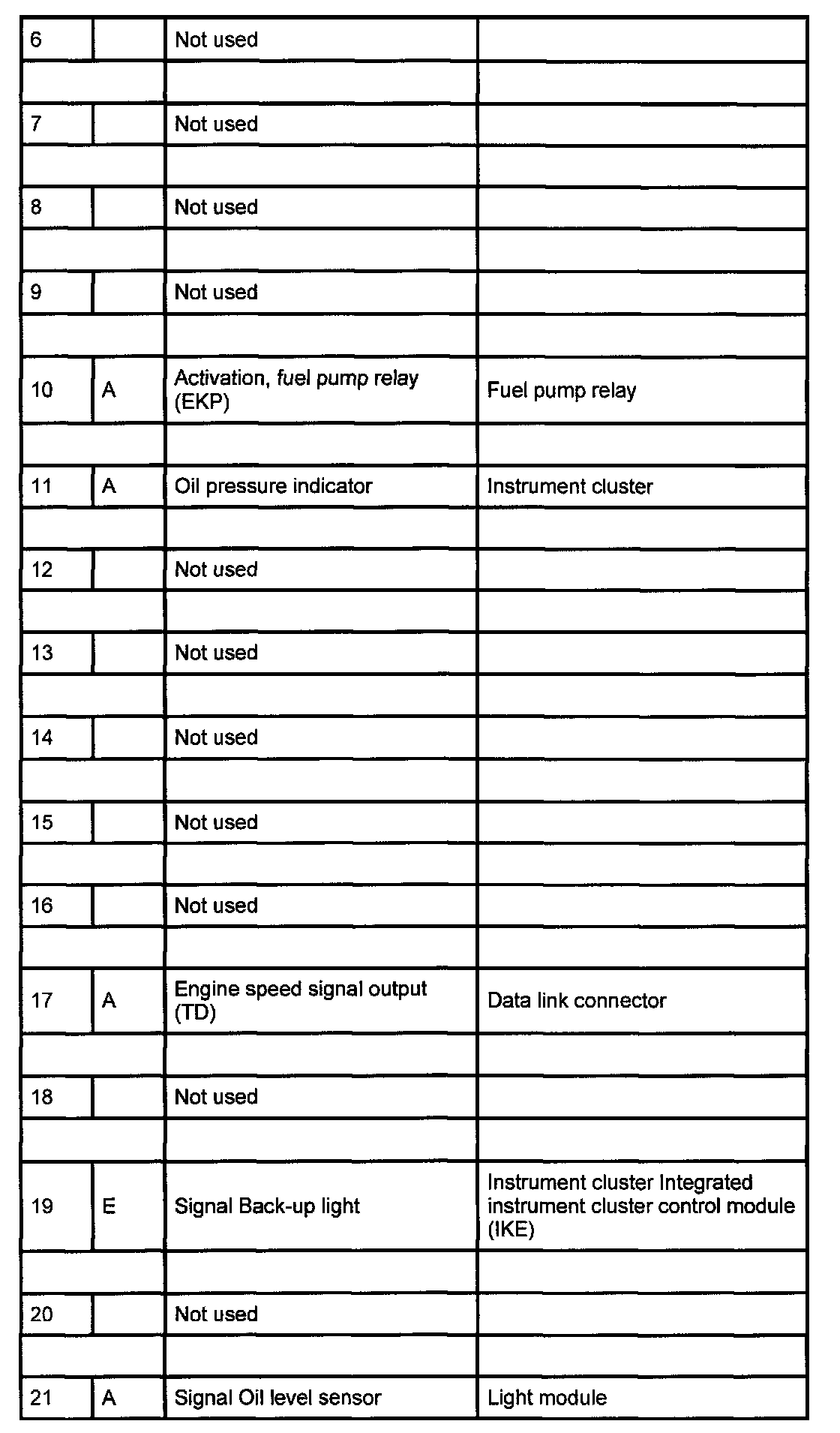

Pin Assignments At Connector X60004 (6-21):

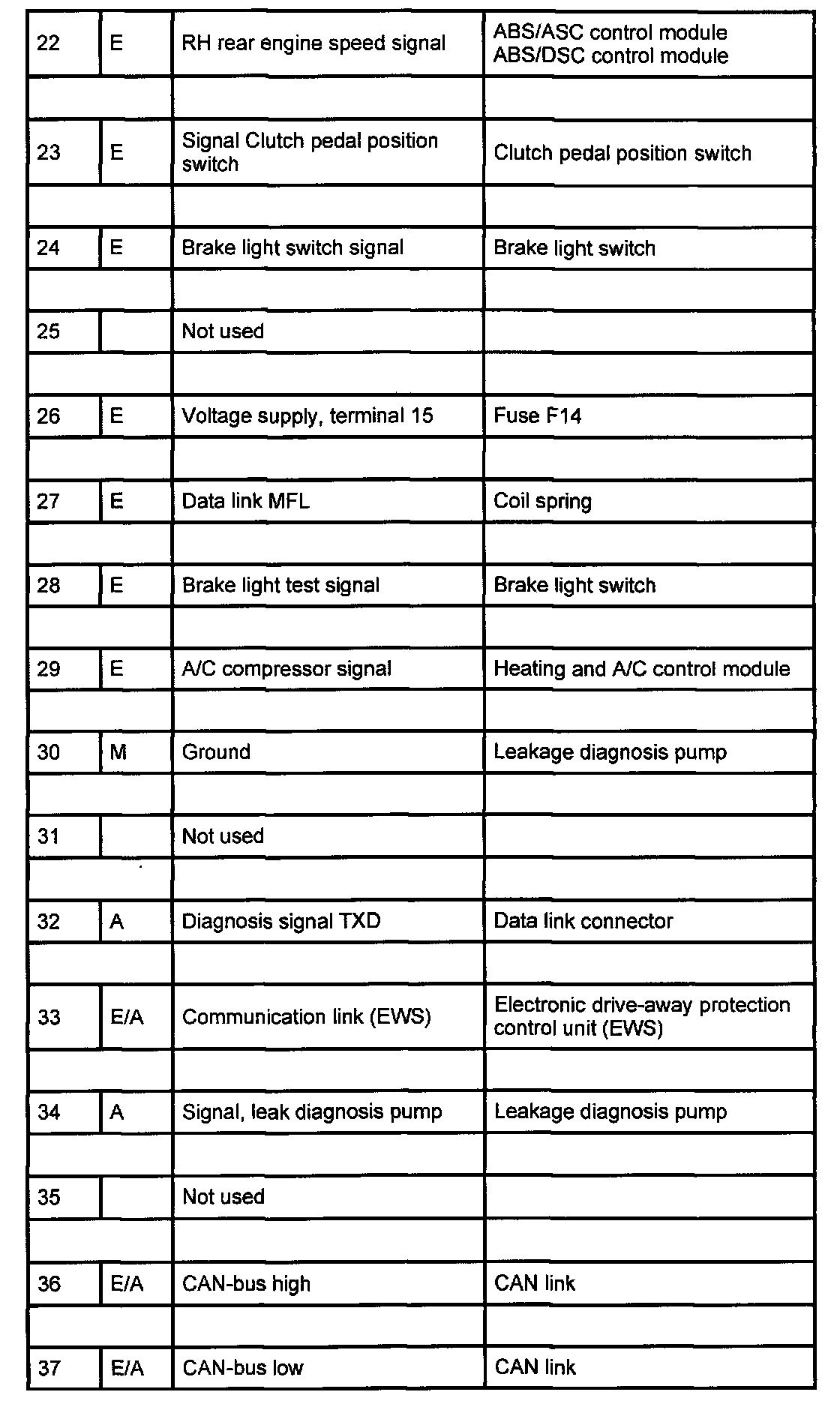

Pin Assignments At Connector X60004 (22-37):

Pin Assignments At Connector X60004 (38-40):

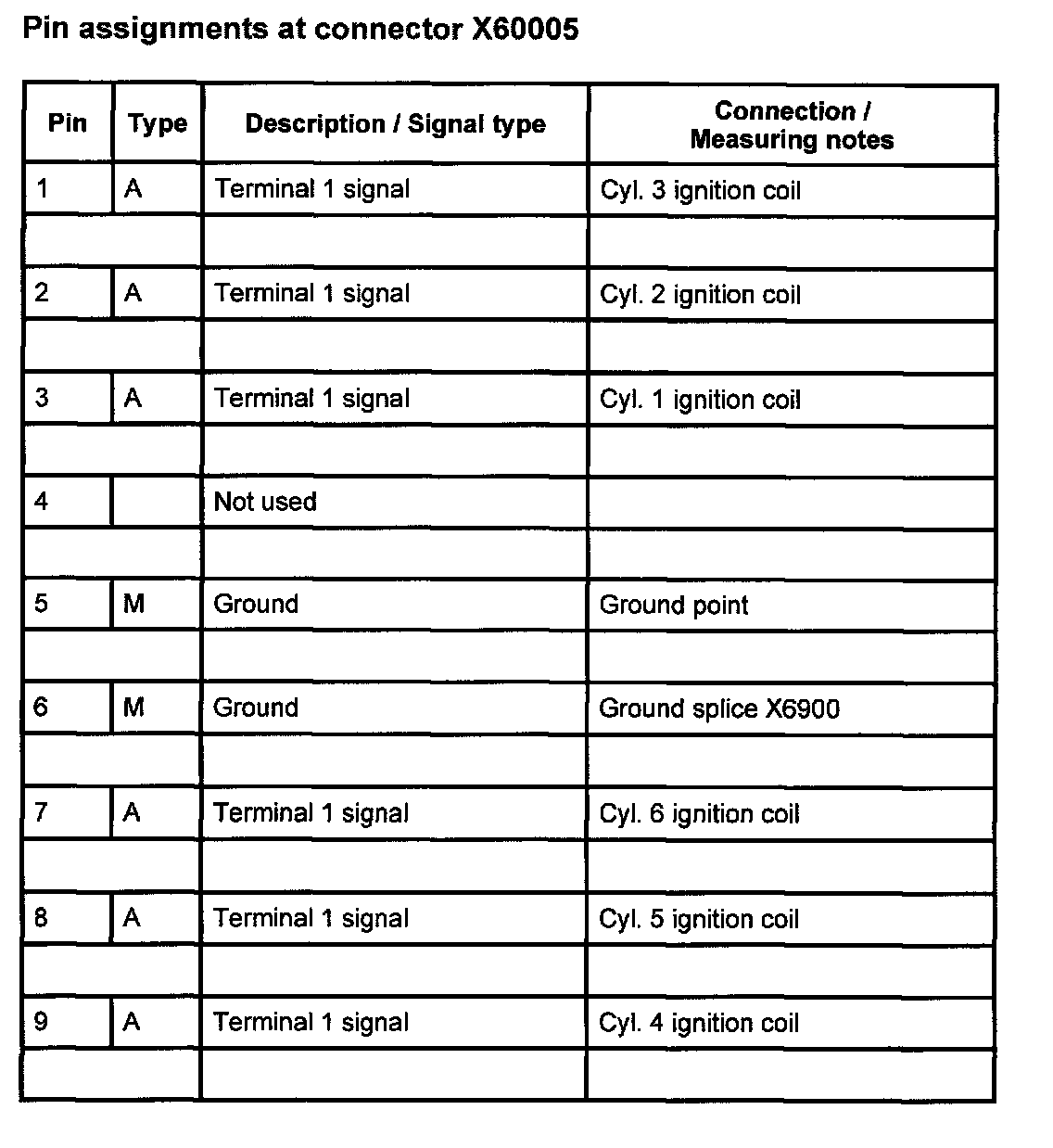

Pin Assignments At Connector X60005:
