IHKA Climate Control - Overview - E36
>>
IHKA E36 Climate Control System
>>
IHKA E36 IPO
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
IHKA E36 IPO

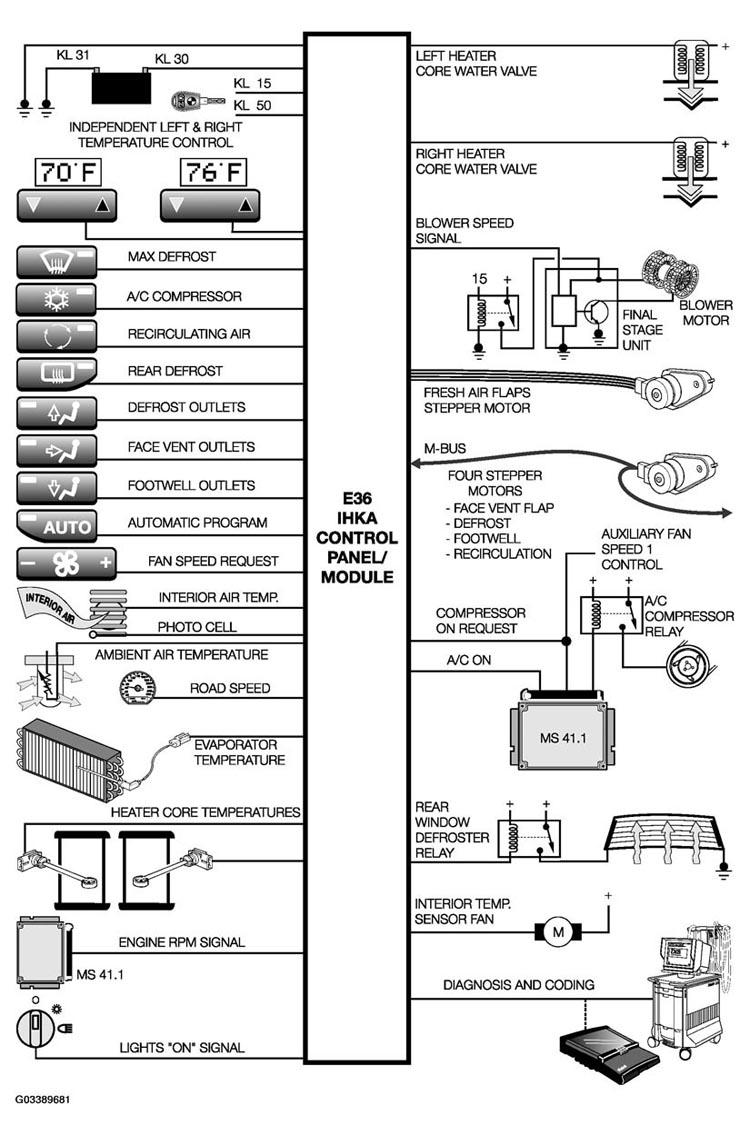

Fig 1: Identifying IHKA E36 IPO Connection Specification
