Wiring Diagrams

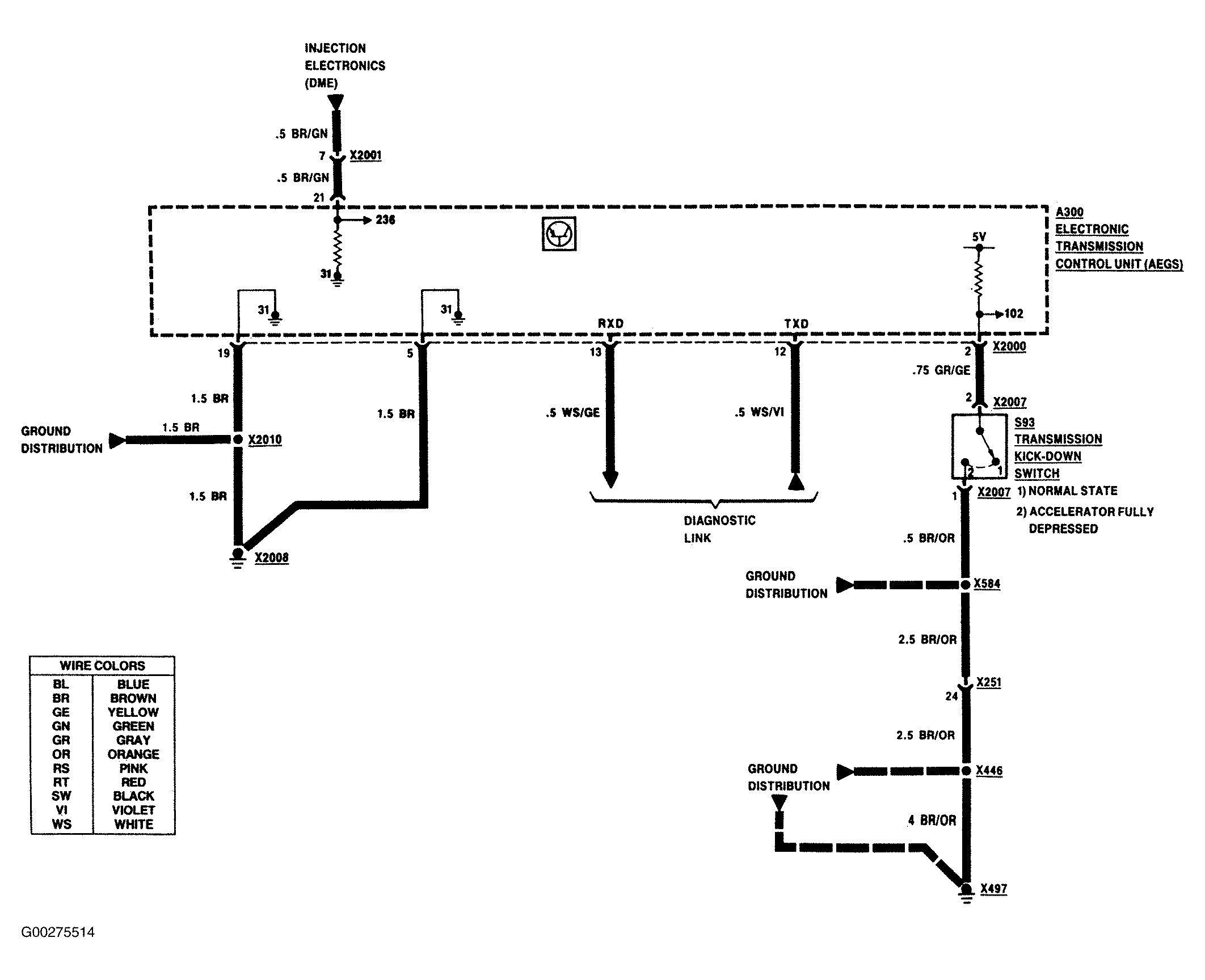

Fig 1: Electronic Transmission Control Wiring Diagram (1 Of 7)

Courtesy of BMW OF NORTH AMERICA, INC.

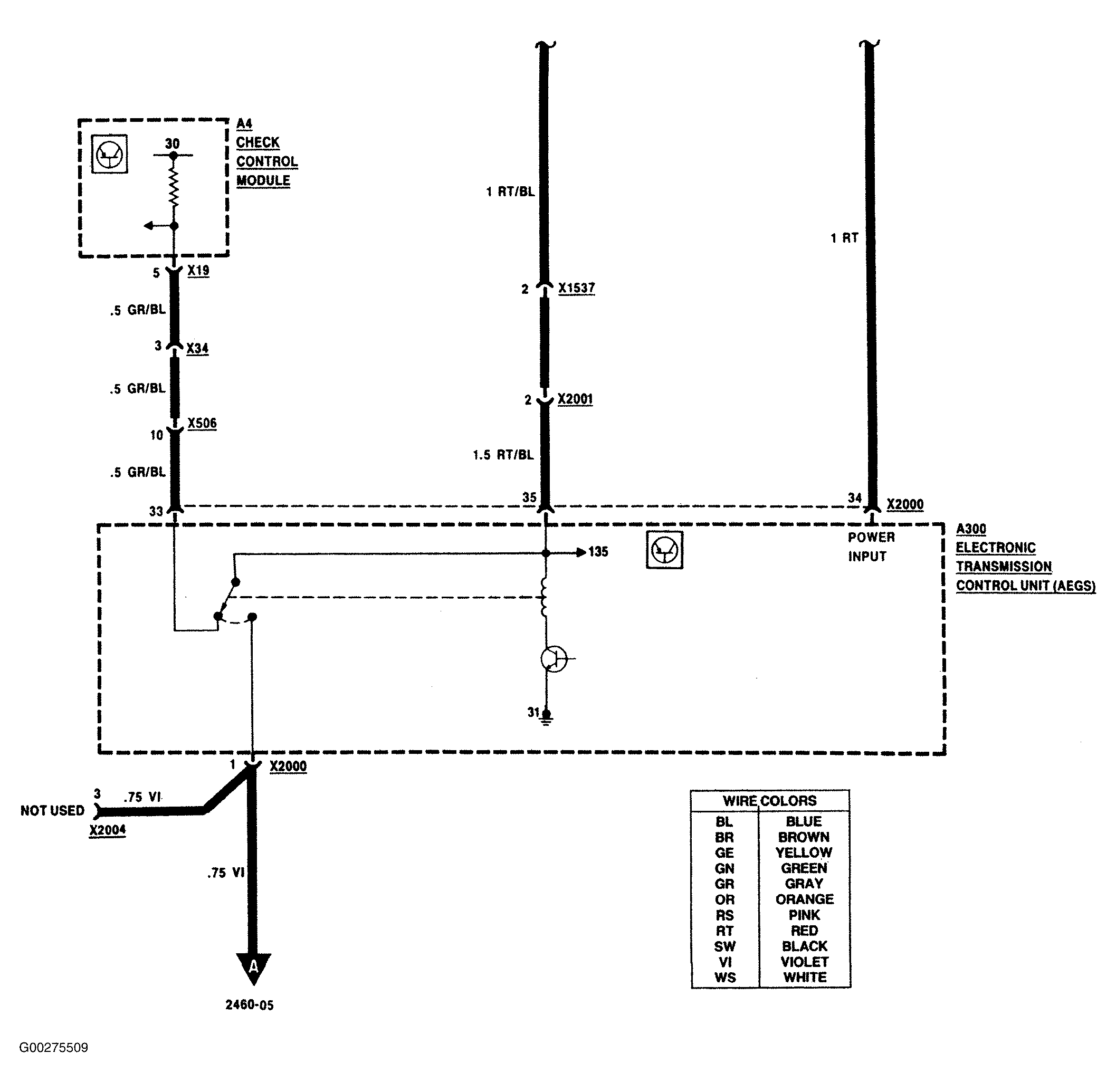

Fig 2: Electronic Transmission Control Wiring Diagram (2 Of 7)

Courtesy of BMW OF NORTH AMERICA, INC.

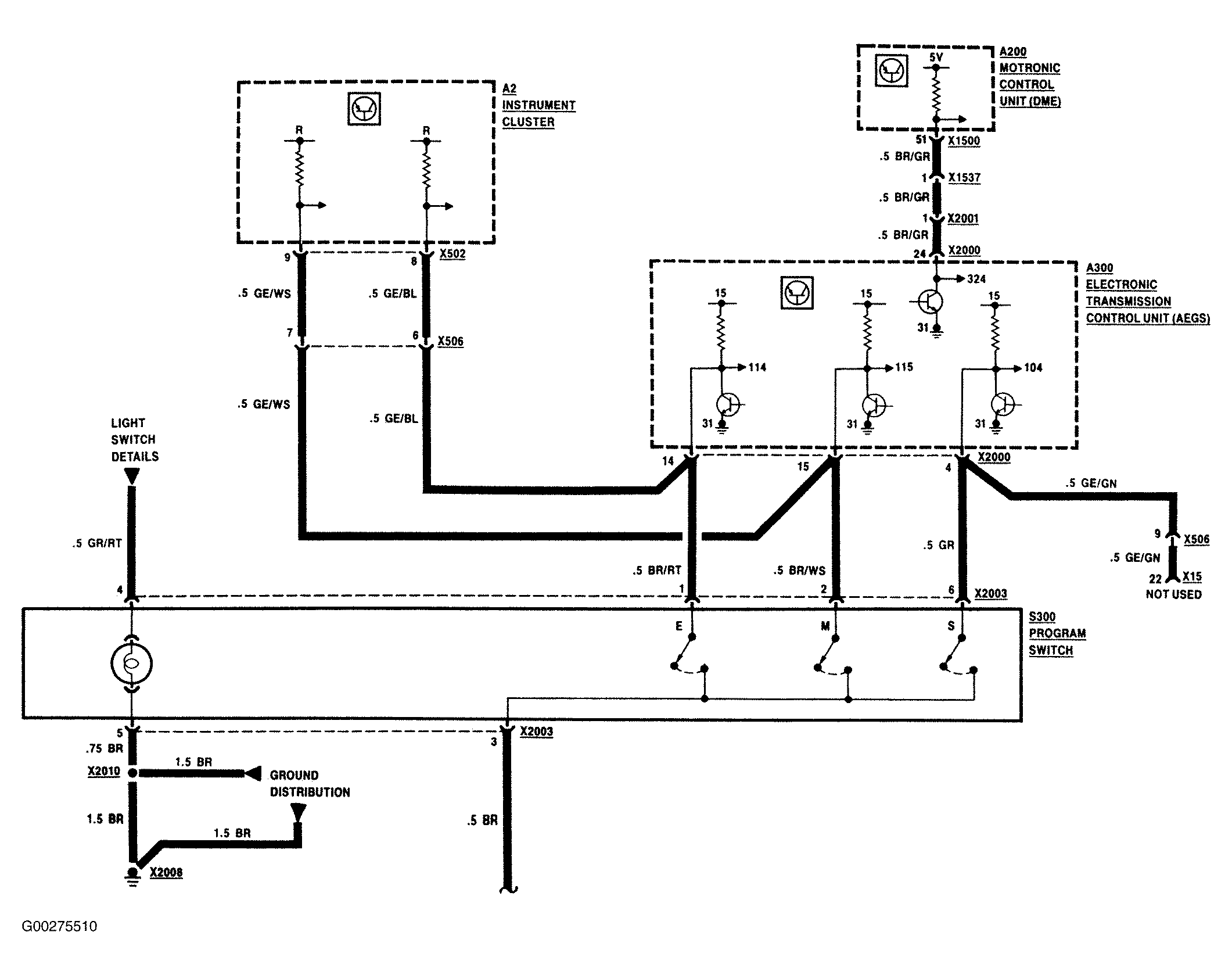

Fig 3: Electronic Transmission Control Wiring Diagram (3 Of 7)

Courtesy of BMW OF NORTH AMERICA, INC.

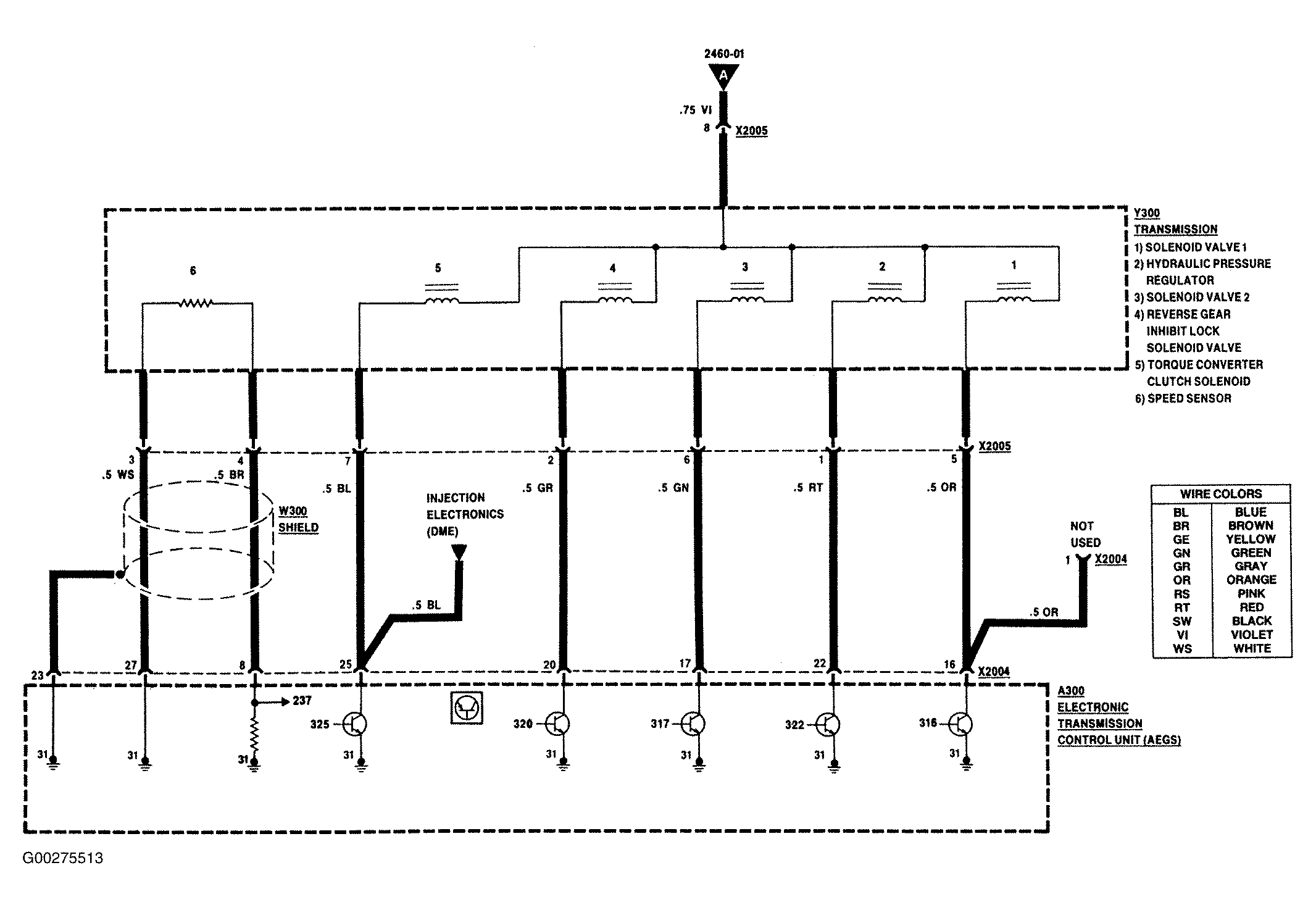

Fig 4: Electronic Transmission Control Wiring Diagram (4 Of 7)

Courtesy of BMW OF NORTH AMERICA, INC.

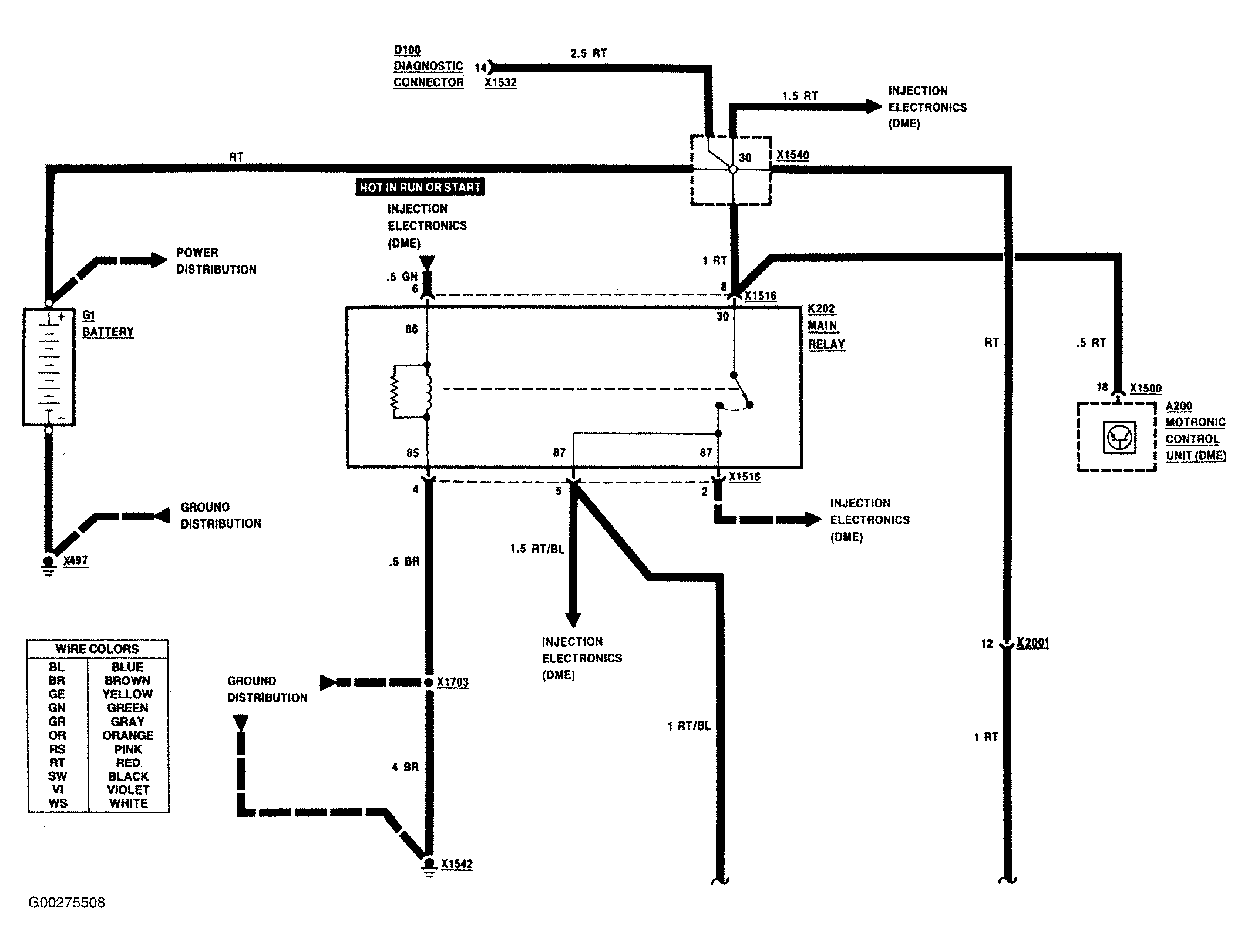

Fig 5: Electronic Transmission Control Wiring Diagram (5 Of 7)

Courtesy of BMW OF NORTH AMERICA, INC.

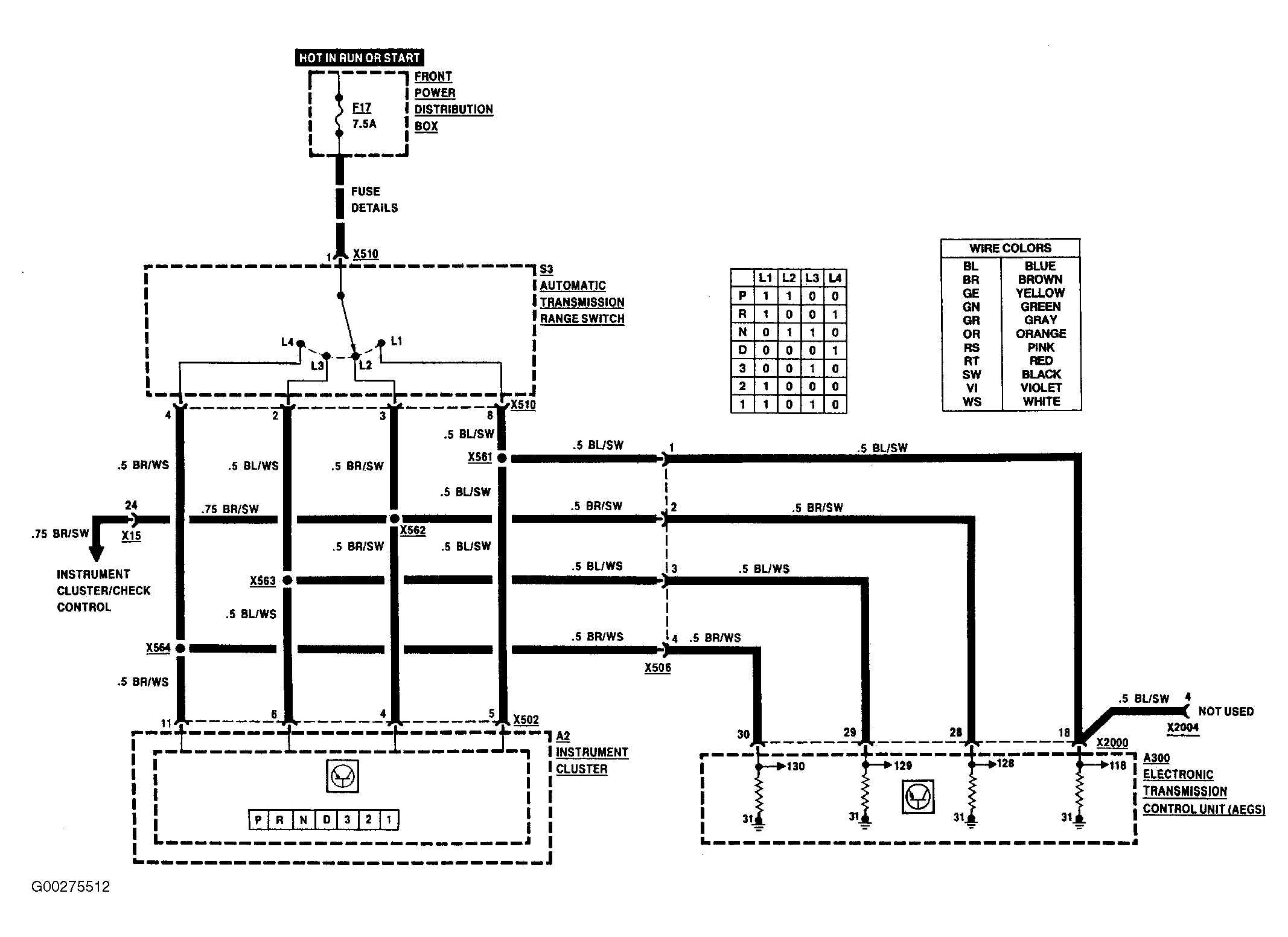

Fig 6: Electronic Transmission Control Wiring Diagram (6 Of 7)

Courtesy of BMW OF NORTH AMERICA, INC.

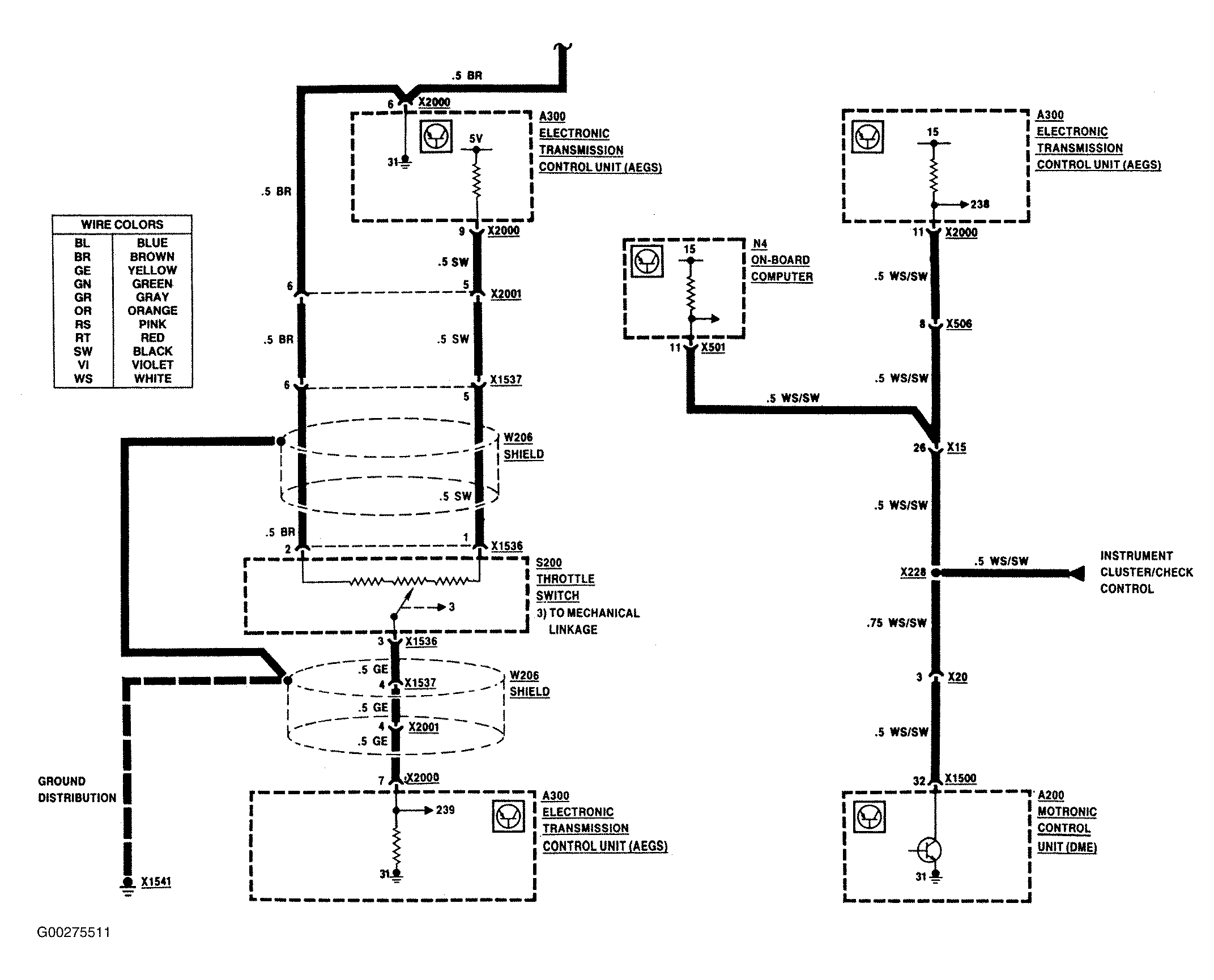

Fig 7: Electronic Transmission Control Wiring Diagram (7 Of 7)

Courtesy of BMW OF NORTH AMERICA, INC.
