IHKA E36 Temperature Sensing

IHKA E36 uses five dedicated NTC thermistor temperature sensors.

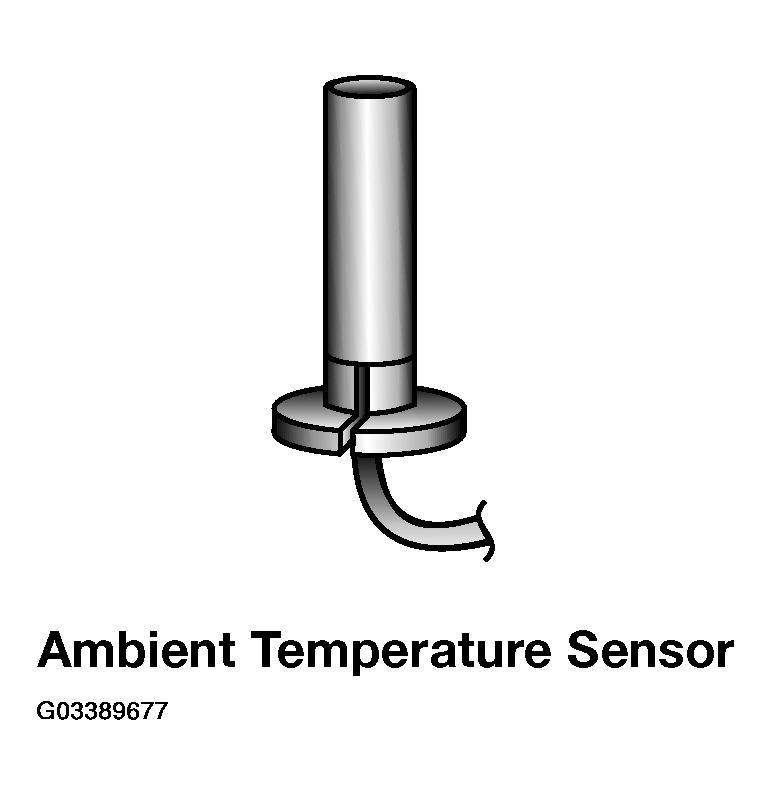

Fig 1: Identifying Ambient Temperature Sensor
G03389677

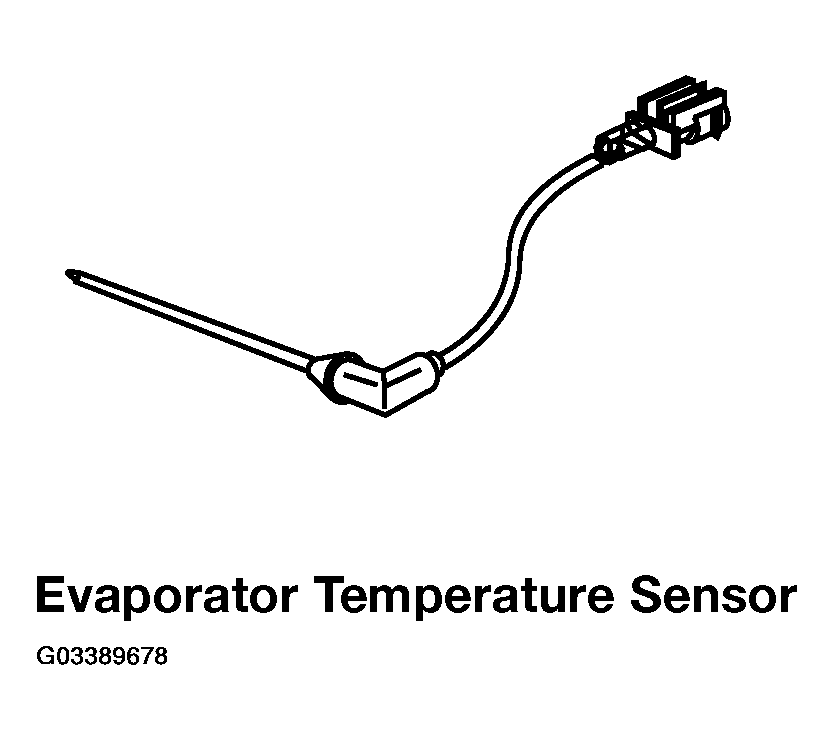

Fig 2: Identifying Evaporator Temperature Sensor
G03389678

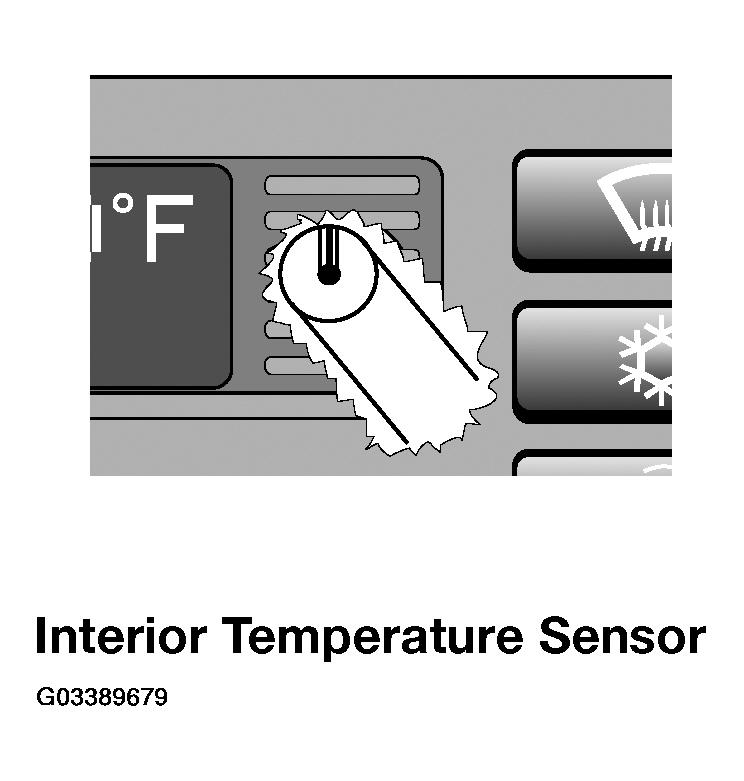

Fig 3: Identifying Interior Temperature Sensor
G03389679

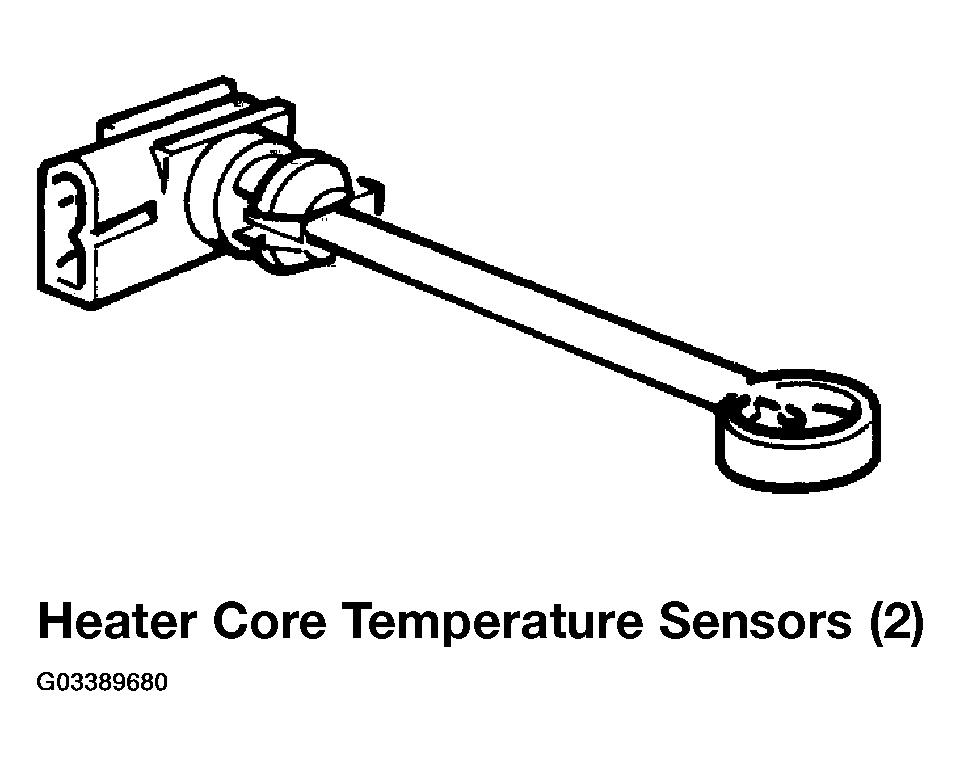

Fig 4: Identifying Heater Core Temperature Sensors (2)
G03389680
