Removal & Installation (4-Cylinder)

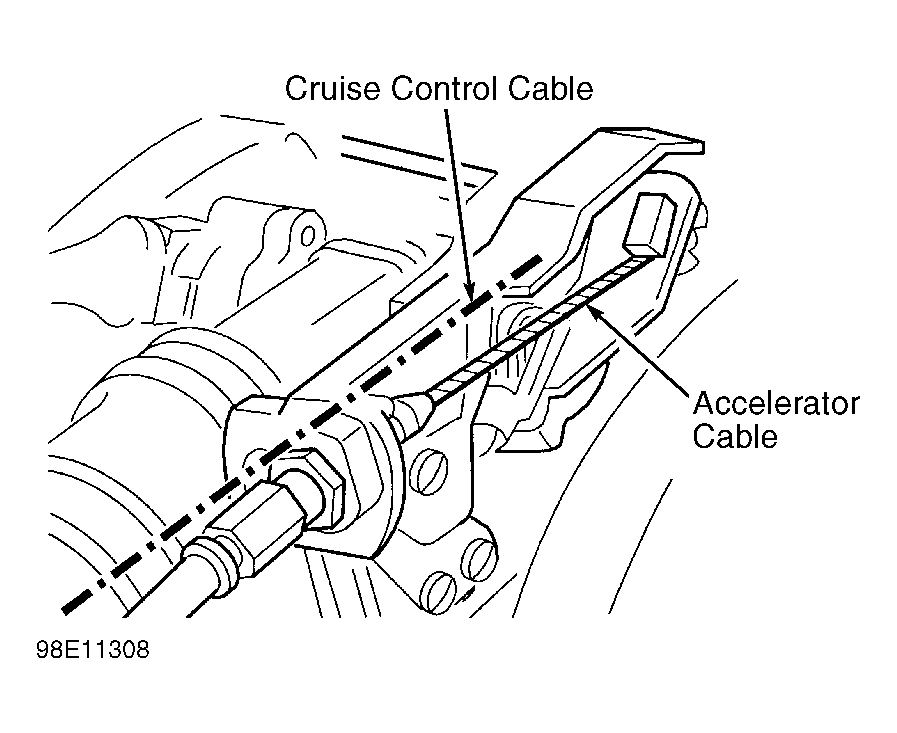

Disconnect accelerator and cruise control cables from throttle body. See Figure. Loosen throttle body air intake duct hose clamps and remove hoses. Disconnect throttle position switch connector and vacuum hoses. Remove 4 nuts, throttle body and gasket. To install, reverse removal procedure.
