Removal & Installation
- Switch off ignition.

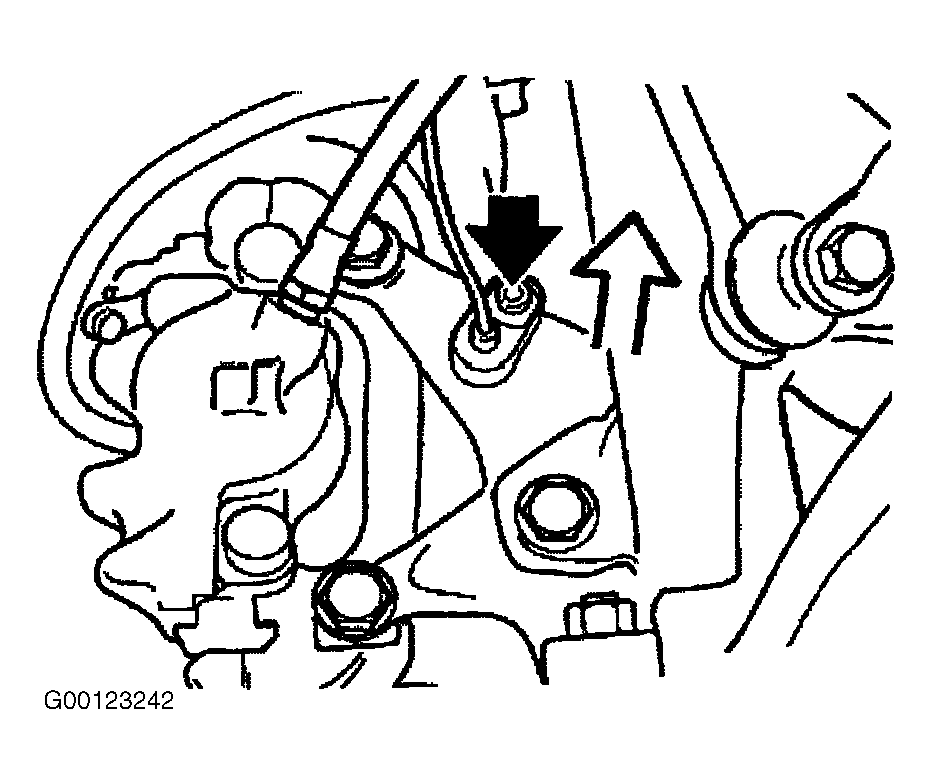

- Unfasten socket head cap screw. See Fig 1 .
- Remove cable from retaining clips and pull out pulse sensor.
- Remove inside trim from wheel arch, pull cable connector for pulse sensor out of bracket and disconnect.
- Clean pulse sensor and insert bore.
- Apply light coat of Staborax NBU 12K or equivalent.
- To install, reverse removal procedure.
