Engine Compartment

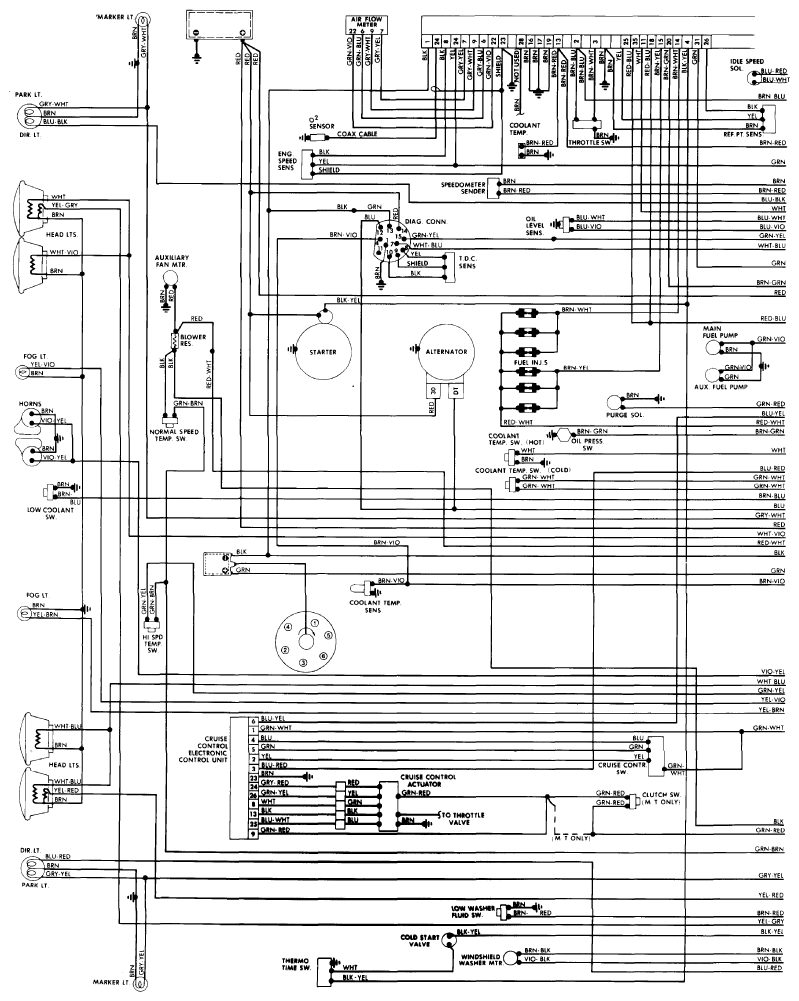

Fig 1: Wiring Diagram - 528e (1 of 4)
G09304370Courtesy of BMW OF NORTH AMERICA, INC.
