Wiring Diagrams: Wiring Diagram

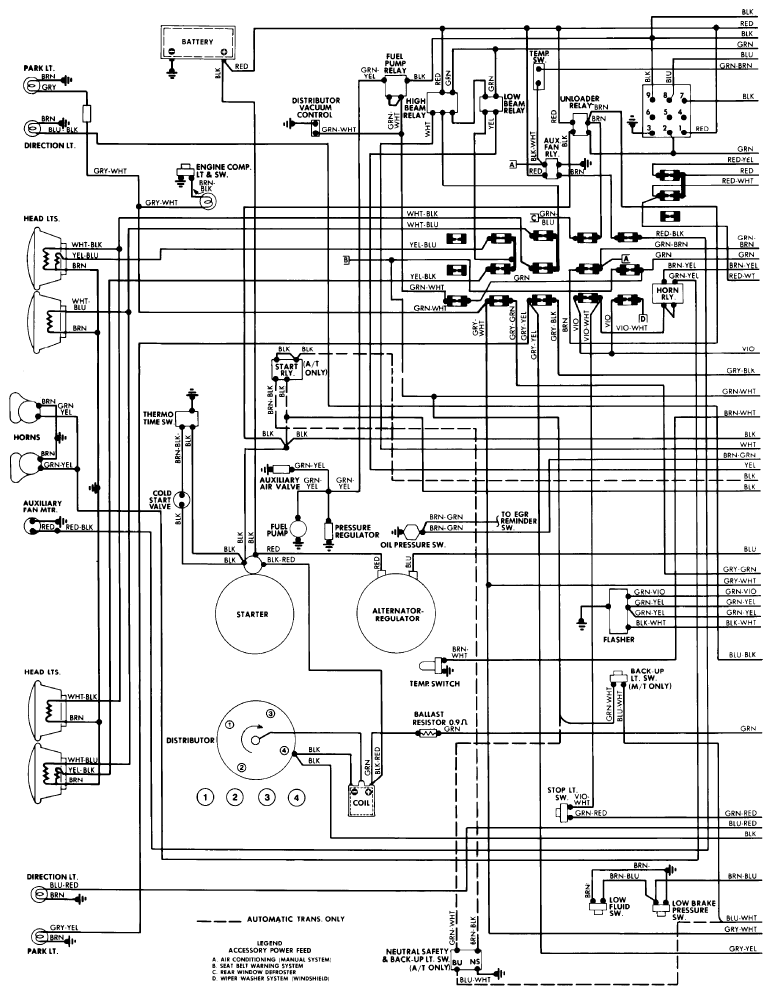

Fig 1: Wiring Diagram - 320i (1 of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

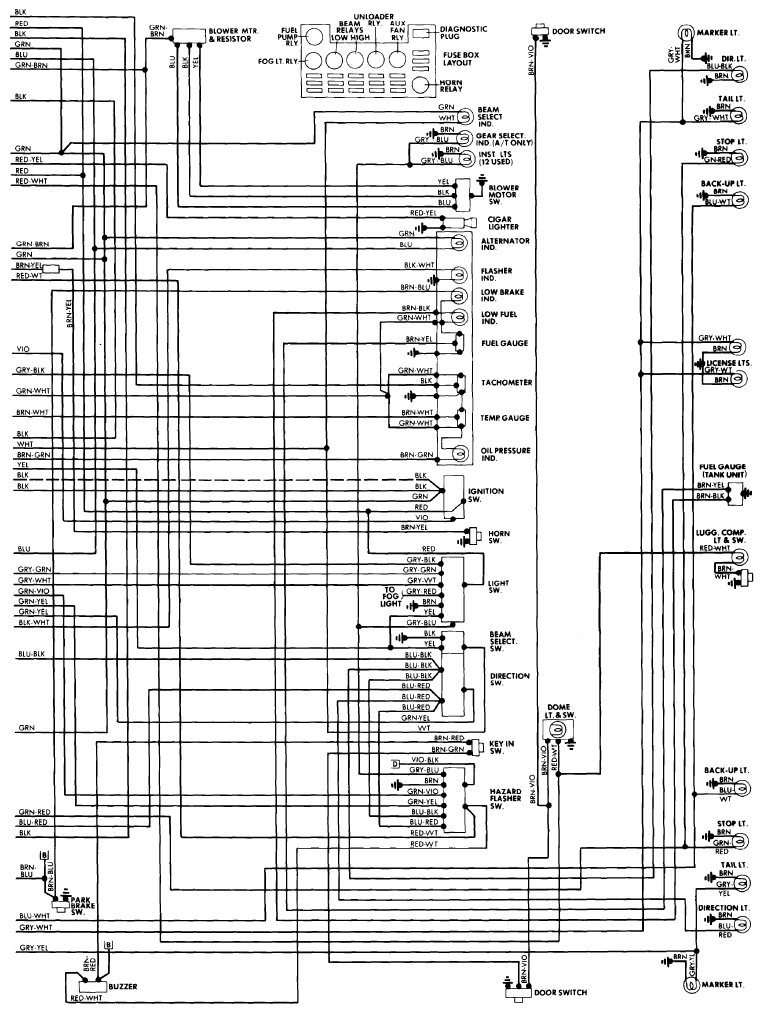

Fig 2: Wiring Diagram - 320i (2 of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
