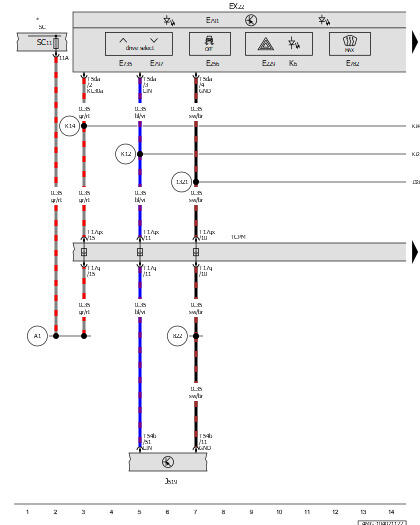

Center Instrument Panel Switch Module, Control Unit 1 For Driving And Convenience Functions, Vehicle Electrical System Control Module
EX22
Center Instrument Panel Switch Module
E229
Emergency Flasher Button
E256
ASR/ESP Button
E735
Driving Profile Selection Button
E782
Defrost Button
E791
Control Unit 1 for Driving and Convenience Functions
E797
Driving Profile Selection Button 2
J519
Vehicle Electrical System Control Module
K6
Emergency Flasher Indicator Lamp
SC
Fuse Panel C
SC11
Fuse 11 (On Fuse Panel C)
T5da
5-Pin Connector, Brown
T17q
17-Pin Connector, Black
T17qx
17-Pin Connector, Black
T54b
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
822
Ground Connection 8 (in Instrument Panel Wiring Harness)
1321
Ground Connection 2 (in Center Console Wiring Harness)
A1
Positive Connection 30a (in Instrument Panel Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
