Engine Department

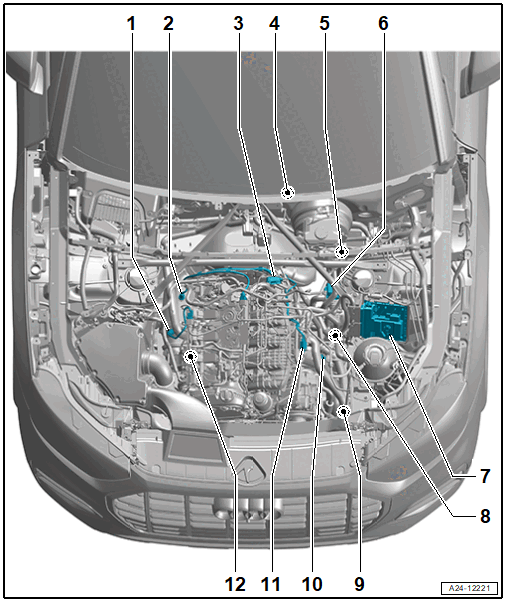

Fig 1: Identifying Engine Compartment Components (2.0L TFSI, DPVA)
GWWA24-12221Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Oxygen Sensor 1 Before Catalytic Converter -GX10-
  2. 2 -  Oxygen Sensor 1 After Catalytic Converter -GX7-
  3. 3 -  Particulate Filter Differential Pressure Sensor -G1037-
  4. 4 -  Accelerator Pedal Module -GX2-
  5. 5 -  Brake Lamp Switch -F-
  6. 6 -  After-Run Coolant Pump -V51-
  7. 7 -  Engine/Motor Control Module -J623-
  8. 8 -  Left Electrohydraulic Engine Mount Solenoid Valve -N144-
  9. 9 -  Engine Coolant Temperature Sensor on Radiator Outlet -G83-
  10. 10 -  Charge Air Pressure Sensor -G31-
  11. 11 -  Dual Exhaust Temperature Sensor 1 -GX41-
  12. 12 -  Right Electrohydraulic Engine Mount Solenoid Valve -N145-
