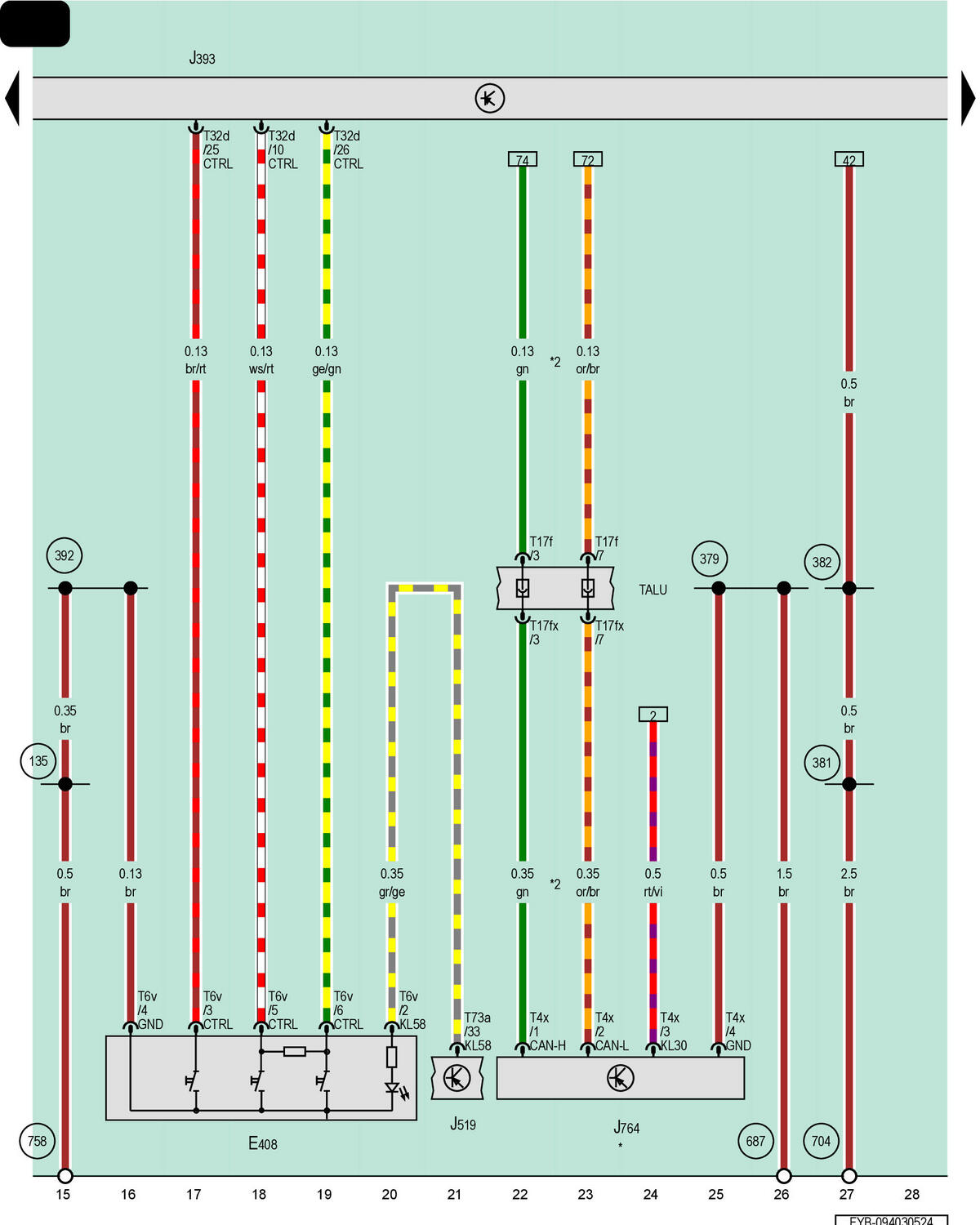

Access/Start Authorization Button, Comfort System Central Control Module, Vehicle Electrical System Control Module, Electronic Steering Column Lock Control Module
E408
Access/Start Authorization Button
J393
Comfort System Central Control Module
J519
Vehicle Electrical System Control Module
J764
Electronic Steering Column Lock Control Module
T4x
4-Pin Connector, Black
T6v
6-Pin Connector, Black
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T32d
32-Pin Connector, Blue
T73a
73-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
379
Ground Connection 14 (in Main Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
392
Ground Connection 27 (in Main Wiring Harness)
687
Ground Connection 1 on Center Tunnel
704
Ground Connection 2 Under Driver Seat
758
Ground Connection 3 on Center Tunnel
*
Country-Specific
*2
Different Wire Color Possible
