EVAP System

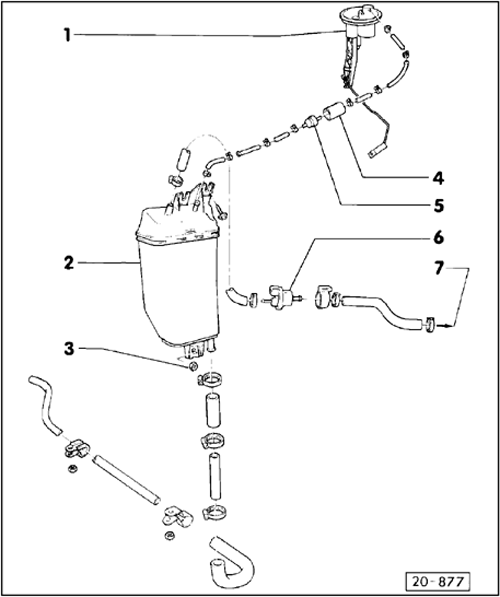

Fig 1: Identifying EVAP System Components
GWW20-877Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Fuel level sensor -G-
  2. 6 -  EVAP canister purge regulator valve 1 -N80-
