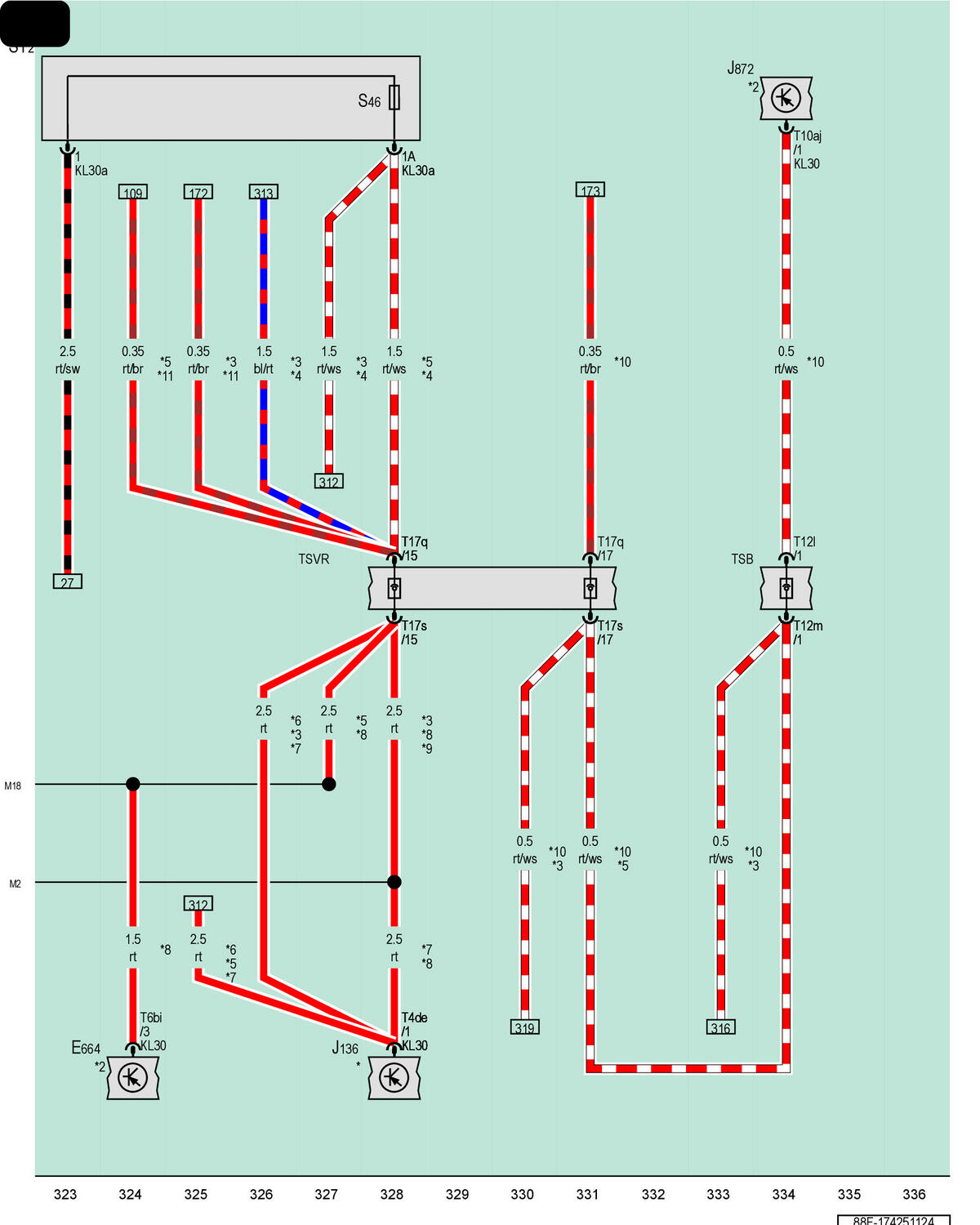

Front Passenger Seat Switch Module, Memory Seat/Steering Column Adjustment Control Module, Front Passenger Multi-Contour Seat Control Module, Fuse Panel 2
E664
Front Passenger Seat Switch Module
J136
Memory Seat/Steering Column Adjustment Control Module
J872
Front Passenger Multi-Contour Seat Control Module
ST2
Fuse Panel 2
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T4de
4-Pin Connector, Black
T6bi
6-Pin Connector, Black
T10aj
10-Pin Connector, Black
T12l
12-Pin Connector, Black
T12m
12-Pin Connector, Black
T17q
17-Pin Connector, Red
T17s
17-Pin Connector, Red
TSB
Front Passenger Seat Backrest Coupling Point
TSVR
Right Front Seat Coupling Station
M2
Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Driver Seat
*2
Refer to Applicable Lumbar Support Adjustment Wiring Diagram
*3
For RHD Vehicles
*4
Lumbar Support with Massage
*5
For LHD Vehicles
*6
For Vehicles Without Power Lumbar Support Adjustment
*7
Driver Memory Seat
*8
For Vehicles with Power Lumbar Support Adjustment
*9
For Vehicles with Power Driver Seat Adjuster
*10
For Seat Adjustment with Massage Function
*11
Lumbar Support Without Massage
