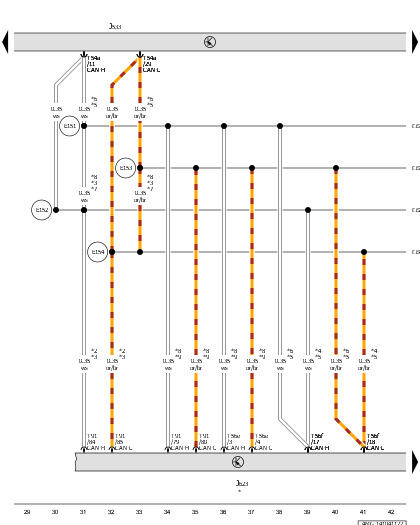

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

T54a

54-Pin Connector, Black

T56e

56-Pin Connector, Black

T56f

56-Pin Connector, Black

T91

91-Pin Connector, Black

E151

Connection 1 (CAN Bus, Engine/Motor Control Module, High)

E152

Connection 2 (CAN Bus, Engine/Motor Control Module, High)

E153

Connection 1 (CAN Bus, Engine/Motor Control Module, Low)

E154

Connection 2 (CAN Bus, Engine/Motor Control Module, Low)

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles with 2.0L Gasoline Engine

*3

For Vehicles with Hybrid Drive

*4

For Vehicles with a 8-Cylinder Engine

*5

For Vehicles with Gasoline Engine

*6

For Vehicles with a 3.0L Engine

*7

For Vehicles with a 6-Cylinder Engine

*8

For Vehicles with Diesel Engine

*9

Depending on Equipment
