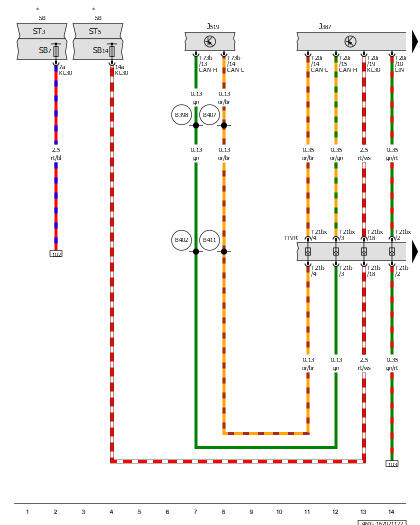

Front Passenger Door Control Module, Vehicle Electrical System Control Module
J387
Front Passenger Door Control Module
J519
Vehicle Electrical System Control Module
SB
Fuse Panel B
ST3
Fuse Panel 3
ST5
Fuse Panel 5
SB7
Fuse 7 (On Fuse Panel B)
SB14
Fuse 14 (On Fuse Panel B)
T20i
20-Pin Connector, White
T21b
21-Pin Connector, Black
T21bx
21-Pin Connector, Black
T73b
73-Pin Connector, Black, Naturally Cloudy
TTVR
Right Front Door Coupling Point
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B402
Comfort System CAN Bus High Connection 6 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B411
Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
