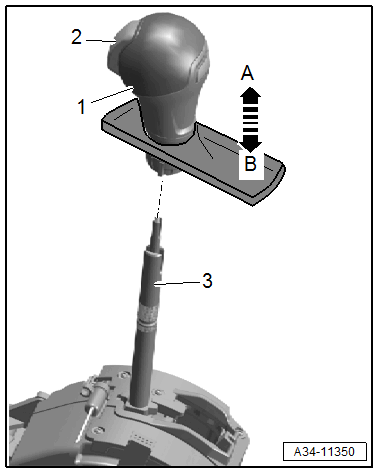

Button In Handle, Moving Into Installation Position: Procedure

Courtesy of AUDI OF AMERICA, LLC

• The Locking Button -2- Sticks Out In Its Installation Position On The Selector Lever Handle.
• If The Locking Button Was Pressed In, It Must Be Brought Back To Its Installation Position So That The Selector Lever Handle Can Be Installed.

-- Carefully Guide The :T40203  All The Way Into The Selector Lever Handle -1- In Direction Of -Arrow-.

Fig 1: Carefully Install T40203 All The Way Into Handle -1-

Courtesy of AUDI OF AMERICA, LLC

• For Reasons Of Clarity, The Selector Lever Handle Is Shown Without The Selector Lever Boot. The Selector Lever Boot Cannot Be Removed From The Handle.
• The Opening On The :T40203  Faces The Locking Button And The Hook To The Left.

-- Hold The Selector Lever Handle -A- Firmly And Turn The :T40203  180° In The Direction Of -Arrow 1-.

Fig 2: Hold Handle -A- And Turn T140203 180 Degrees In Direction Of -Arrow 1-

Courtesy of AUDI OF AMERICA, LLC

-- Hold The Selector Lever Handle Firmly And Carefully Remove The :T40203  In Direction Of -Arrow 2-.

• When Removing The :T40203  , The Locking Button On The Selector Lever Handle -A- Is Pushed Out And Locked.
  Fig 3: Resetting Lock Button With Tool T140203

  Courtesy of AUDI OF AMERICA, LLC
• Do Not Touch The Locking Button Anymore Before Installing The Selector Lever Handle So That The Locking Button Does Not Fall Back In.
