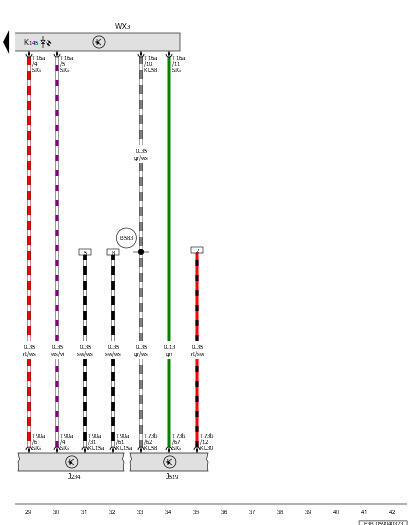

Airbag Control Module, Vehicle Electrical System Control Module, Front Roof Module
 Courtesy of AUDI OF AMERICA, LLC
|
J234
Airbag Control Module
J519
Vehicle Electrical System Control Module
K145
Front Passenger Airbag -Disabled- Indicator Lamp
T16a
16-Pin Connector, Brown
T73b
73-Pin Connector, Black
T90a
90-Pin Connector, Yellow
WX3
Front Roof Module
B583
Positive Connection (58) (in Interior Wiring Harness)
