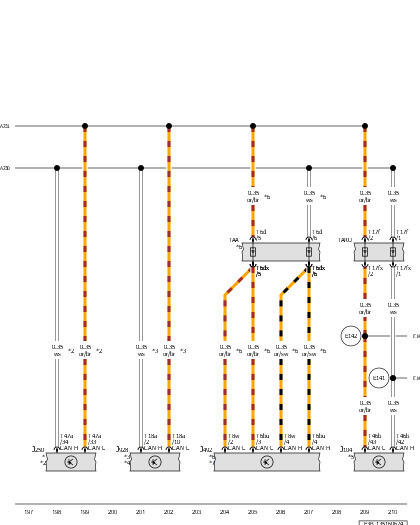

Abs Control Module, Electronic Damping Control Module, All-Wheel Drive Control Module, Peripheral Camera Control Module

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J250

Electronic Damping Control Module

J492

All-Wheel Drive Control Module

J928

Peripheral Camera Control Module

T6bu

6-Pin Connector, Black

T6d

6-Pin Connector, Black

T6dx

6-Pin Connector, Black

T8w

8-Pin Connector, Black

T17f

17-Pin Connector, Black

T17fx

17-Pin Connector, Black

T18a

18-Pin Connector, Black

T46b

46-Pin Connector, Black

T47a

47-Pin Connector, Black

TAA

All-Wheel Drive Coupling Point

TARU

Coupling Point on Right A-Pillar, Bottom

A230

Suspension/Instrument Cluster CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)

A231

Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)

E141

Connection (CAN Bus Suspension Sensors High) (in Engine/Motor Compartment Wiring Harness)

E142

Connection (CAN Bus Suspension Sensors Low) (in Engine/Motor Compartment Wiring Harness)

*

Refer to the Applicable Adaptive Chassis DCC Wiring Diagram

*2

For Vehicles with Adaptive Chassis

*3

For Vehicles with Peripheral Camera

*4

Refer to Applicable Peripheral Camera Wiring Diagram

*5

Refer to Applicable Brake System Wiring Diagram

*6

For AWD Vehicles

*7

Refer to Applicable AWD Wiring Diagram
