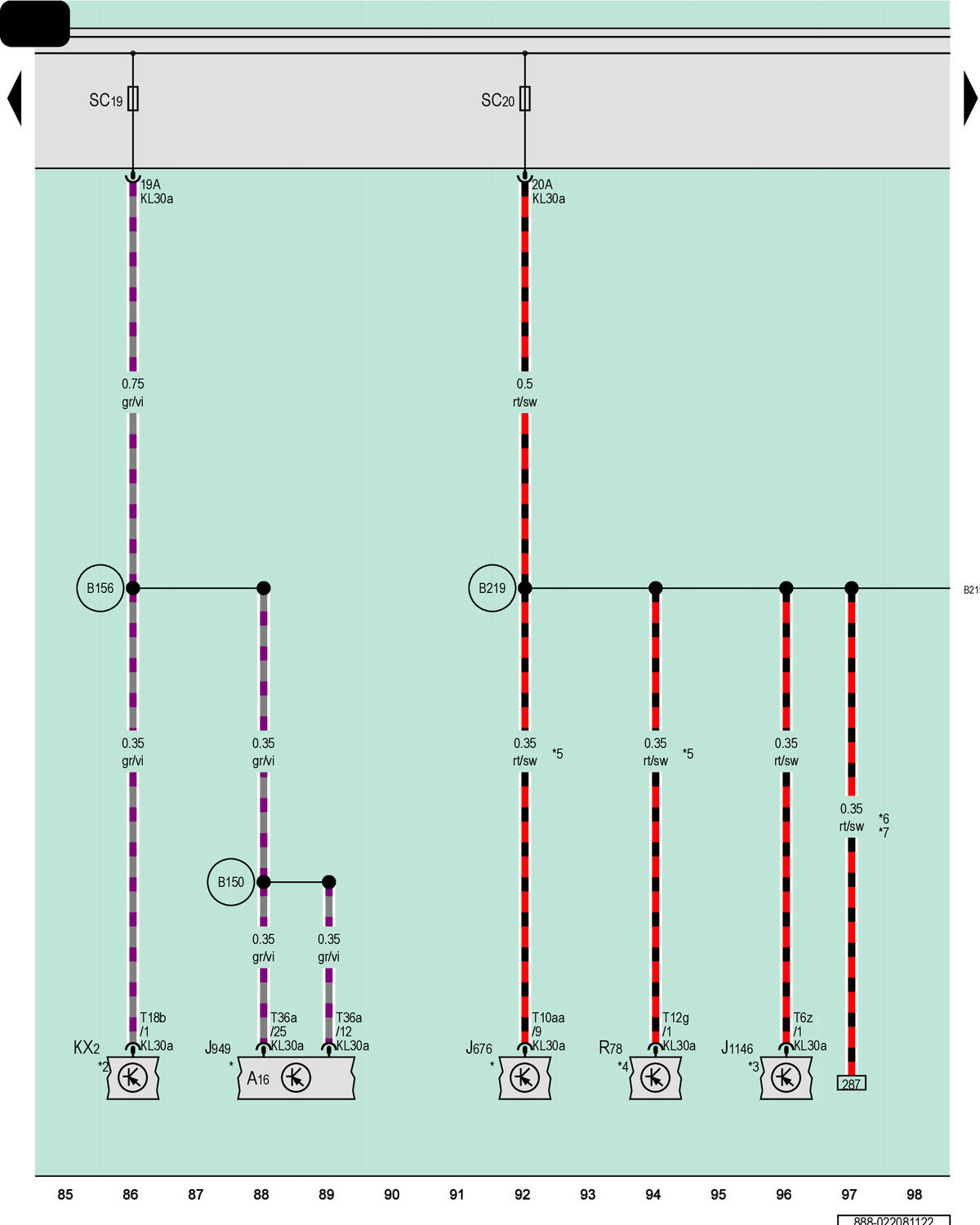

Chip Card Reader Control Module, Control Module For Emergency Call Module And Communication Unit, Mobile Device Charger 1, Instrument Cluster, TV Tuner, Fuse Panel C
A16
Telematics Emergency Battery
J676
Chip Card Reader Control Module
J949
Control Module for Emergency Call Module and Communication Unit
J1146
Mobile Device Charger 1
KX2
Instrument Cluster
R78
TV Tuner
SC
Fuse Panel C
SC19
Fuse 19 (On Fuse Panel C)
SC20
Fuse 20 (On Fuse Panel C)
T6z
6-Pin Connector, Black
T10aa
10-Pin Connector, Black
T12g
12-Pin Connector, Black
T18b
18-Pin Connector, Black
T36a
36-Pin Connector, Black
B150
Positive Connection 2 (30a) (in Interior Wiring Harness)
B156
Positive Connection 30a (in Interior Wiring Harness)
B219
Positive Connection 4 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Communication Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Instrument Cluster
*3
Refer to the Applicable Cell Phone System Wiring Diagram
*4
Refer to the Applicable TV Tuner Wiring Diagram
*5
For Vehicles with Japan Equipment
*6
Depending on Equipment
*7
From June 2021
