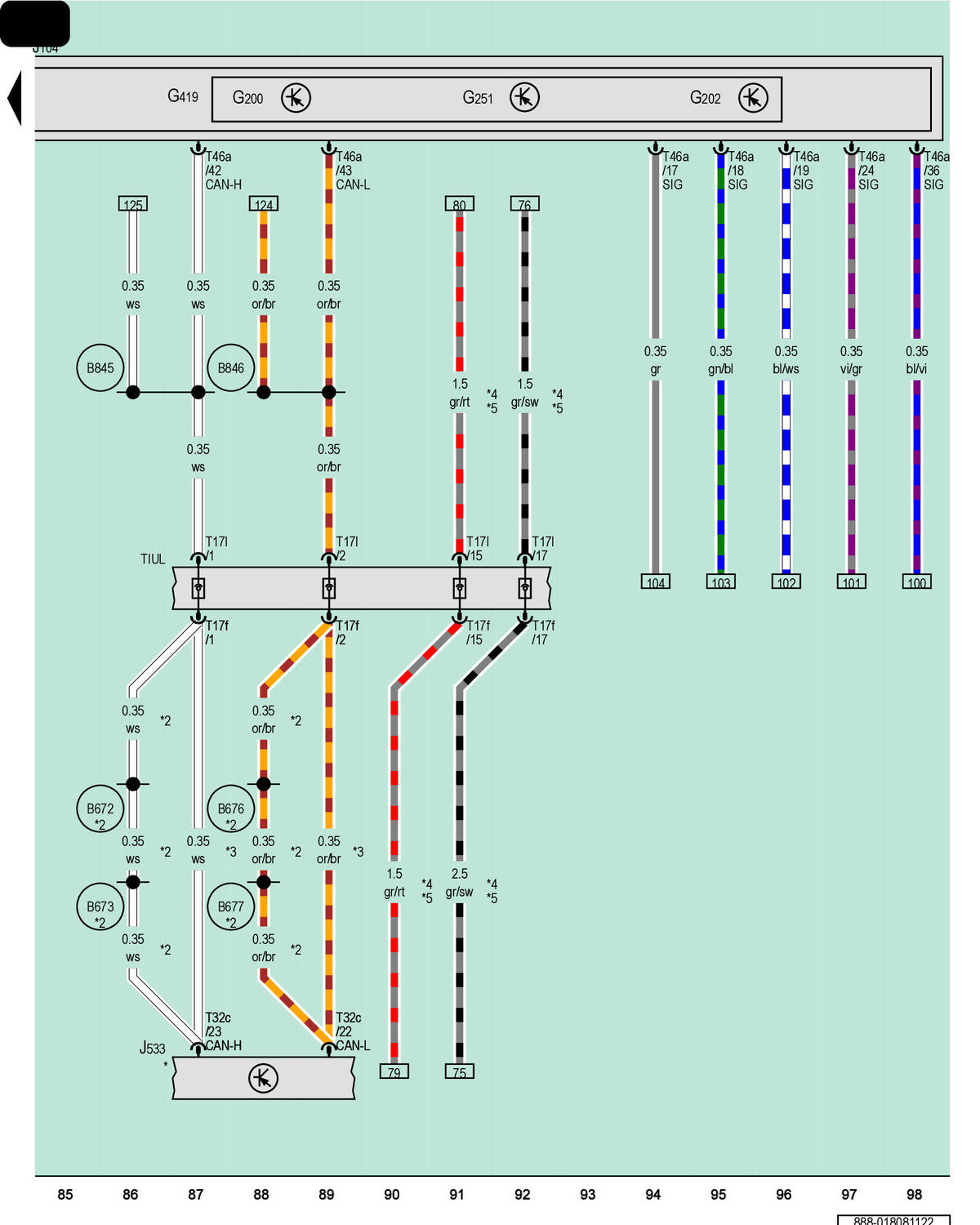

Abs Control Module, Data Bus On Board Diagnostic Interface
G200
Transverse Acceleration Sensor
G202
Rotation Rate Sensor
G251
Longitudinal Acceleration Sensor
G419
ESP Sensor Unit
J104
ABS Control Module
J533
Data Bus on Board Diagnostic Interface
T17f
17-Pin Connector, Gray
T17l
17-Pin Connector, Gray
T32c
32-Pin Connector, Black
T46a
46-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
B672
Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B673
Suspension/Instrument Cluster CAN Bus High Connection 2 (in Main Wiring Harness)
B676
Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
B677
Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Main Wiring Harness)
B845
CAN Bus Suspension High Connection 1 (in Engine/Motor Compartment Wiring Harness)
B846
CAN Bus Suspension Low Connection 1 (in Engine/Motor Compartment Wiring Harness)
*1
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
For Vehicles with Park Distance Control (PDC)
*3
For Vehicles Without a Parking Aid
*4
For RHD Vehicles
*5
From April 2020
