91 PSS MIB3: "Loading System. Please Wait..." Displayed After Driving For An Extended Period (GROUP 91, NO. 24-99)

Publication date: 2024-05-22
Reference number: GROUP 91, NO. 24-99
Supersedes refnos: 2073629/1, 2073629/2, GROUP 91, NO. 24-15

91 PSS MIB3: "LOADING SYSTEM. PLEASE WAIT..." DISPLAYED AFTER DRIVING FOR AN EXTENDED PERIOD

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 91, NO. 24-99 (2075325/2), Date of Issue: December 19, 2024

AUDI:	2023 A4, A5 allroad, S4, A5, A5 Cabriolet, A5 Sportback, S5, S5 Cabriolet, S5 Sportback, RS 5, RS 5 Sportback, A6, A6 allroad, S6, RS 6 Avant, A7, S7, RS 7, A8, S8, e-tron, e-tron Sportback, Q5, Q5 e quattro, Q5 Sportback, SQ5, SQ5 Sportback, Q7, SQ7, Q8, SQ8, and RS Q8
GROUP:	91 - Radio, Telephone, Board Computer, Multi-Function Indicator (MFI)

Superceded Bulletin(s): GROUP 91, NO. 24-57, Date of Issue: September 18, 2024

SERVICE INFORMATION

91 24 99 2075325/2 December 19, 2024. Supersedes Technical Service Bulletin Group 91 number 24-57 dated September 18, 2024, for reasons listed below.

APPLICABLE MODELS AND YEARS

Model(s)	Year	VIN Range	Vehicle-Specific Equipment
A4, A5 allroad, S4, A5, A5 Cabriolet, A5 Sportback, S5, S5 Cabriolet, S5 Sportback, RS 5, RS 5 Sportback, A6, A6 allroad, S6, RS 6 Avant, A7, S7, RS 7, A8, S8, e-tron, e-tron Sportback, Q5, Q5 e quattro, Q5 Sportback, SQ5, SQ5 Sportback, Q7, SQ7, Q8, SQ8, and RS Q8	2023	All	MIB3

CONDITION

REVISION HISTORY

Revision	Date	Purpose
2	-	Revised Service (updated release date)
1	09/18/2024	Initial publication

Customer states:

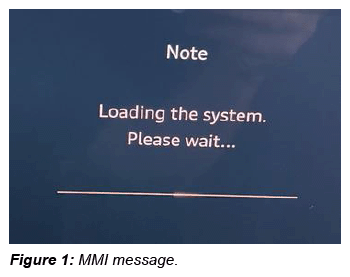

After driving for a while, the following message is displayed on the MMI display: "Loading system. Please wait..." (see Figure 1).
When this message appears, the MMI system can no longer be operated via the display.
The MMI system continues to run in the background and audio is output.
The system can be operated using the multifunction steering wheel controls.

Workshop findings:

The customer complaint cannot always be reproduced as this behavior only occurs after driving for a while.
The message remains active for the entire bus cycle until the vehicle is stationary and parked for an extended period of time.
The MMI functions normally without any issues the next time the vehicle is used.

NOTE: If the message "Loading the system. Please wait..." only appears for a short time after starting the system, this PSS does not apply.

TECHNICAL BACKGROUND 1

Software issue on the control unit one for information electronics -J794- (address word 005F)

PRODUCTION SOLUTION

Model year 2024 Software >4000.

SERVICE

Explain to the customer that a solution is being worked on and that no repairs are necessary at this point.
Do not replace any components for this condition since this will not resolve the customer's concern. For information regarding the timeline, please refer to TSB 2076404, 00 Deployment overview for customer service packages MLB and MQB for MIB3/connectivity box/OCU3/LSR.
Create a PSS record in the PSS application through the Pending Service Solutions (PSS) link in AccessAudi (under Related Links >> Service ).
Workaround:
Restart the MMI:
- Press and hold the on/off button for at least 10 seconds.
- The MMI screen goes dark temporarily and the MMI restarts.
- The system can then be operated normally again.
- However, the complaint can reoccur.

WARRANTY

This TSB is informational only and not applicable to any Audi Warranty.

NOTE: Replacing parts or attempting repairs will not fix the problem. Unjustified labor/replacement parts will be charged back. Invoicing under warranty is not permitted.

ADDITIONAL INFORMATION

All part and service references provided in this TSB (2075325 ) are subject to change and/or removal. Always check with your Parts Department and/or ETKA for the latest information and parts bulletins. Please check the Repair Manual for fasteners, bolts, nuts, and screws that require replacement during the repair.
