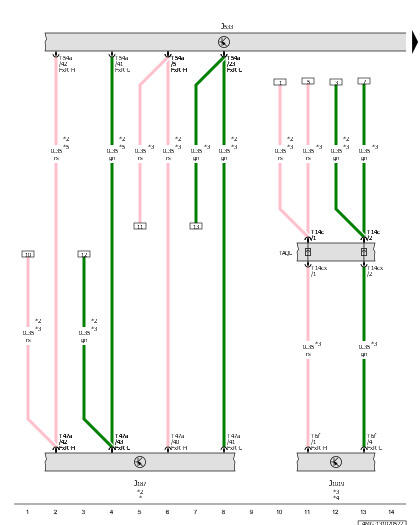

Differential Lock Control Module, Data Bus On Board Diagnostic Interface, Rear Axle Steering Control Module

Courtesy of AUDI

J187

Differential Lock Control Module

J533

Data Bus on Board Diagnostic Interface

J1019

Rear Axle Steering Control Module

T6f

6-Pin Connector, Black

T14c

14-Pin Connector, Black

T14cx

14-Pin Connector, Black

T47a

47-Pin Connector, Black

T54a

54-Pin Connector, Black

TAQL

Coupling Point on Rear Crossmember, Left

*

Refer to Applicable AWD Wiring Diagram

*2

For Vehicles with Rear Final Drive - Sport Differential

*3

For Vehicles with Rear Axle Steering

*4

Refer to Applicable Wiring Diagram

*5

For Vehicles Without Rear Axle Steering
