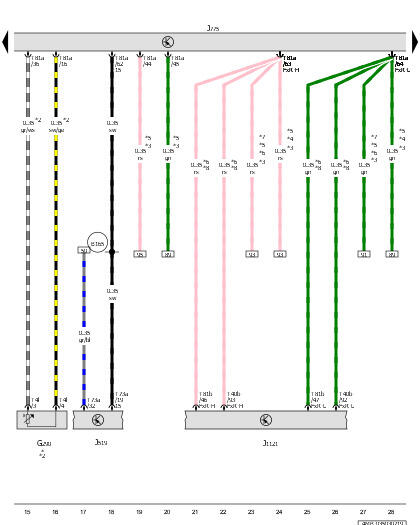

Level Control Pump Temperature Sensor, Drivetrain Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI

G290

Level Control Pump Temperature Sensor

J519

Vehicle Electrical System Control Module

J775

Drivetrain Control Module

J1121

Driver Assistance Systems Control Module

T4l

4-Pin Connector

T40b

40-Pin Connector, Black

T73a

73-Pin Connector, Black, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

B165

Positive Connection 2 (15) (in Interior Wiring Harness)

*

Pre-Wired Component

*2

Omitted as a Running Change

*3

Data Bus Wire (Flexray Bus)

*4

Not for Vehicles with Driver Assistance System

*5

For Vehicles with Level Control System

*6

For Driver Assistance System

*7

Through June 2019

*8

Depending on Equipment
