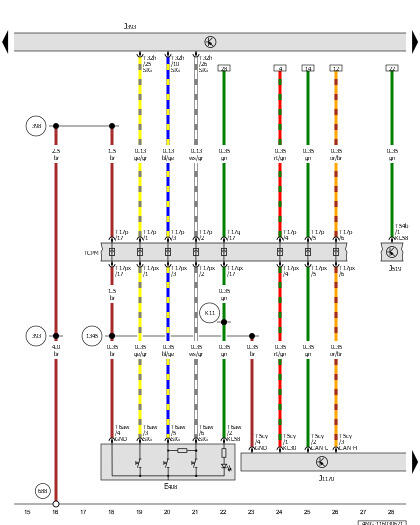

Access/Start Authorization Button, Comfort System Central Control Module, Vehicle Electrical System Control Module, Near Field Communication Control Module 2
E408
Access/Start Authorization Button
J393
Comfort System Central Control Module
J519
Vehicle Electrical System Control Module
J1170
Near Field Communication Control Module 2
T5cy
5-Pin Connector, Black
T6aw
6-Pin Connector, Black
T17p
17-Pin Connector, Black
T17px
17-Pin Connector, Black
T17q
17-Pin Connector, Black
T17qx
17-Pin Connector, Black
T32h
32-Pin Connector, Blue
T54b
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
393
Ground Connection 28 (in Main Wiring Harness)
398
Ground Connection 33 (in Main Wiring Harness)
688
Ground Connection 2 on Center Tunnel
1345
Ground Connection 3 (in Center Console Wiring Harness)
K11
Connection 58S (in Center Console Wiring Harness)
