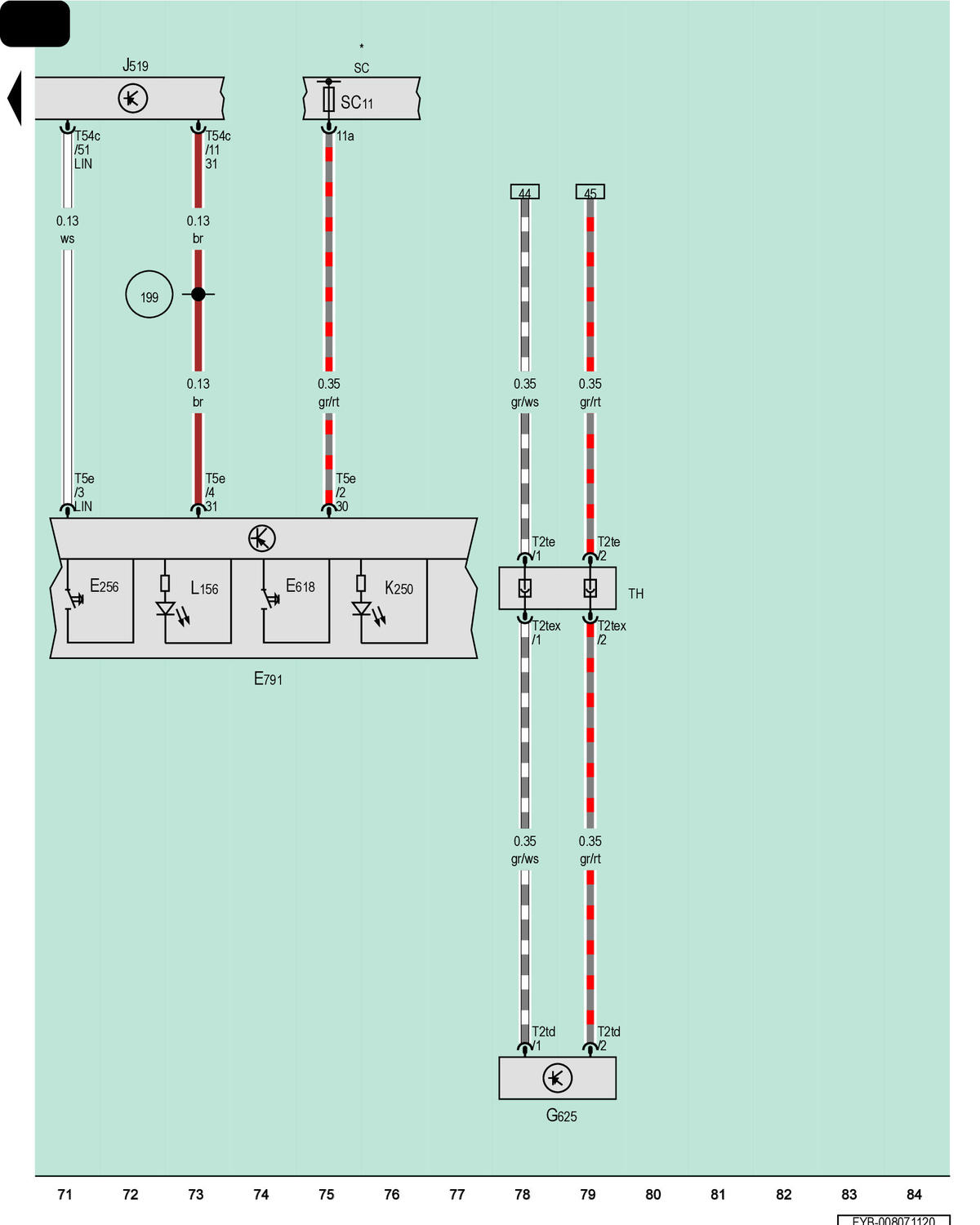

ASR/Esp Button, Hill Descent Control Button, Control Unit 1 For Driving And Convenience Functions, Roof Rack Recognition Sensor, Vehicle Electrical System Control Module

Courtesy of AUDI

E256

ASR/ESP Button

E618

Hill Descent Control Button

E791

Control Unit 1 for Driving and Convenience Functions

G625

Roof Rack Recognition Sensor

J519

Vehicle Electrical System Control Module

K250

Hill Descent Control Indicator Lamp

L156

Switch Illumination Bulb

SC

Fuse Panel C

SC11

Fuse 11 (On Fuse Panel C)

T2td

2-Pin Connector, Black

T2te

2-Pin Connector, Black

T2tex

2-Pin Connector, Black

T5e

5-Pin Connector, Brown

T54c

54-Pin Connector, Black

TH

Coupling Point on Roof

199

Ground Connection 3 (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
