Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING: Removing

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

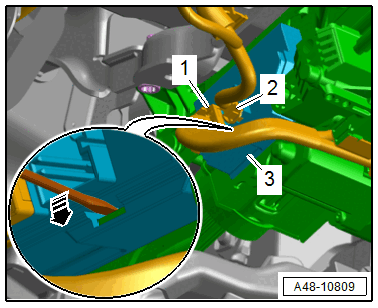

-- Disconnect the connectors -1 and 2-.

GWWA48-10809Courtesy of AUDI OF AMERICA, LLC

-- Release the catch -arrow- and remove the Power Adjustable Steering Column Control Module -J866- -3- toward the left.
