Home >> Audi >> 2021 >> A8 e Quattro >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagram [CZSE,CZSA] >> Wiring Diagram >> Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine Temperature Control Sensor, Engine/Motor Control Module >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

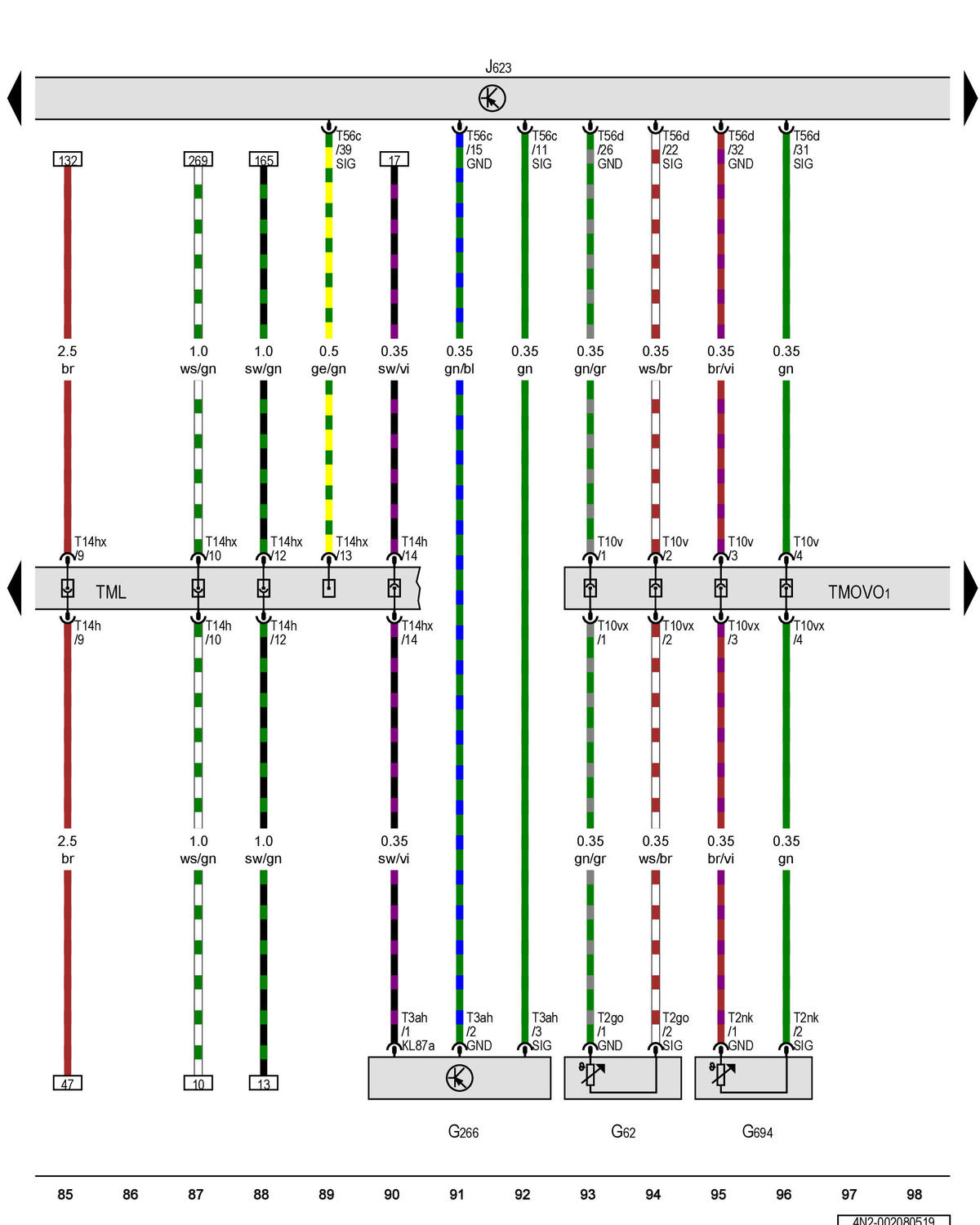

Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine Temperature Control Sensor, Engine/Motor Control Module: Notes

GWW4N2-002080519Courtesy of AUDI OF AMERICA, LLC
